Micro小尺寸的音叉谐振器是医疗保健的甄选CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA,Micro Crystal AG是一家全球领先的频率元器件制造商，公司成立于1978年瑞士，作为一名领先者肩负的重任更加深，在为社会创造价值的同时也要高效生产出优质的产品，最主流的产品包含微型贴片石英晶体，实时时钟、振荡器和OCXOs等产品,所生产出来的产品必须经过严格化的生产体系，以及高要求高标准的流程,确保每一款产品的都符合国家认证标准.
| 制造商零件编号 | 制造商 | 描述 | 产品类型 | 频率 |
| CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro音叉谐振器 | 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals | 100 kHz |
| CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro音叉谐振器 | 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals | 32.768 kHz |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC | Micro音叉谐振器 | 晶体 32.768 kHz 12.5 pF 100 PPM -40/+125C | Crystals | 32.768 kHz |
| CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA | Micro音叉谐振器 | 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR | Crystals | 32.768 kHz |
| CC7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro音叉谐振器 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz |
| CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC | Micro音叉谐振器 | 晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C | Crystals | 32.768 kHz |
| CM7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro音叉谐振器 | 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 | Crystals | 32.768 kHz |
| CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro音叉谐振器 | 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz |
| CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro音叉谐振器 | 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals | 32.768 kHz |
| CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro音叉谐振器 | 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz |
| CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro音叉谐振器 | 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals | 100 kHz |
| CM7V-T1A-32.768k-6pF-20PPM-TB-QA | Micro音叉谐振器 | 晶体 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz |
| MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au | Micro音叉谐振器 | 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals | 32.768 kHz |
| OV-7605-C8-32.768kHz-20PPM-TA-QC | Micro音叉谐振器 | 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C | Clock Oscillators | 32.768 kHz |
| CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC | Micro音叉谐振器 | 晶体 1.8432 MHz 10.0 pF 500 PPM -55/+125C | Crystals | 1.8432 MHz |
| OM-7604-C7-32.768kHz-20PPM-TB-QC | Micro音叉谐振器 | 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C | Clock Oscillators | 32.768 kHz |
| CC4V-T1A-32.768k-9pF-20PPM-TC-QA | Micro音叉谐振器 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz |
| MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au | Micro音叉谐振器 | 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C | Crystals | 32.768 kHz |
| OV-7604-C7-32.768k-10PPM-TB-QA | Micro音叉谐振器 | 标准时钟振荡器 32.768 kHz +/-10 PPM -40/+125C AEC-Q200 | Clock Oscillators | 32.768 kHz |
| OV-7604-C7-32.768k-20PPM-TA-QA | Micro音叉谐振器 | 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C | Clock Oscillators | 32.768 kHz |
| CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC | Micro音叉谐振器 | 晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals | 1 MHz |
| CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC | Micro音叉谐振器 | 晶体 153.600 kHz 9.0 pF +/-30 PPM -40/+85C | Crystals | 153.6 kHz |
| CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC | Micro音叉谐振器 | 晶体 307.200 kHz 4.0 pF 100 PPM -55/+125C | Crystals | 307.2 kHz |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC | Micro音叉谐振器 | 晶体 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals | 1.8432 MHz |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC | Micro音叉谐振器 | 晶体 1.8432 MHz 10.0 pF 100 PPM -55/+125C | Crystals | 1.8432 MHz |
| CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC | Micro音叉谐振器 | 晶体 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals | 40 kHz |
| CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro音叉谐振器 | 晶体32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz |
| CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro音叉谐振器 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz |
| CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC | Micro音叉谐振器 | 晶体 32.768 kHz 9.0 pF +/-10 PPM -55/+125C | Crystals | 32.768 kHz |
| CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro音叉谐振器 | 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals | 32.768 kHz |
| CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz |
| CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC | Micro音叉谐振器 | 晶体 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C | Crystals | 1.8432 MHz |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC | Micro音叉谐振器 | 晶体 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals | 1.2288 MHz |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC | Micro音叉谐振器 | 晶体 1.2288 MHz 10.0 pF 100 PPM -55/+125C | Crystals | 1.2288 MHz |
| CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC | Micro音叉谐振器 | 晶体 40.000 kHz 9.0 pF +/-30 PPM -55/+125C | Crystals | 40 kHz |
| CC4V-T1A-32.768k-9pF-20PPM-TA-QA | Micro音叉谐振器 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz |
| CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro音叉谐振器 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz |
| MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au | Micro音叉谐振器 | 晶体 32.768 kHz 8.2 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro音叉谐振器 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals | 32.768 kHz |
| CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC | Micro音叉谐振器 | 晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz |
| OV-7604-C7-32.768kHz-10PPM-TA-QC | Micro音叉谐振器 | 标准时钟振荡器32.768 kHz +/-10 PPM -40/+85C | Clock Oscillators | 32.768 kHz |
| OV-0100-C7-100.000kHz-50PPM-TA-QC | Micro音叉谐振器 | 标准时钟振荡器 100.0 kHz +/-50 PPM -40/+85C | Clock Oscillators | 100 kHz |
| CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC | Micro音叉谐振器 | 晶体 307.200 kHz 4.0 pF +/-100 PPM -40/+85C | Crystals | 307.2 kHz |
| CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC | Micro音叉谐振器 | 晶体 32.768 kHz 12.5 pF +/-30 PPM -40/+85C | Crystals | 32.768 kHz |
| CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC | Micro音叉谐振器 | 晶体 32.768 kHz 9.0 pF +/-30 PPM -40/+85C | Crystals | 32.768 kHz |
| CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC | Micro音叉谐振器 | 晶体 32.768 kHz 9.0 pF +/-15 PPM -40/+85C | Crystals | 32.768 kHz |
| CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC | Micro音叉谐振器 | 晶体 32.768 kHz 9.0 pF +/-30 PPM -55/+125C | Crystals | 32.768 kHz |
| CC1V-T1A-1.000MHz-10pF-100PPM-TA-QC | Micro音叉谐振器 | 晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals | 1 MHz |
| CC1V-T1A-2.000MHz-10pF-100PPM-TA-QC | Micro音叉谐振器 | 晶体 2.000 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals | 2 MHz |
| CC1V-T1A-40.000kHz-9pF-30PPM-TA-QC | Micro音叉谐振器 | 晶体 40.000 kHz 9.0 pF +/-30 PPM -40/+85C | Crystals | 40 kHz |
| 200125-PL08 | Micro音叉谐振器 | 晶体 32.768kHz 7pF +/-10 PPM -40C +85C | Crystals | 32.768 kHz |
| OM-7605-C8-20PPM-TA-QA | Micro音叉谐振器 | 标准时钟振荡器 32.768kHz 20ppm 1.6-5.5V | Clock Oscillators | 32.768 kHz |
| CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA | Micro音叉谐振器 | 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz |
| CM7V-T1A-32.768k-9pF-20PPM-TA-QA T3 | Micro音叉谐振器 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz |
Micro小尺寸的音叉谐振器是医疗保健的甄选CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA,主要针对领域广泛，其中包含可穿戴设备、物联网、移动电话、消费产品、计算机、汽车电子、手表、工业控制以及医疗植入设备和其他高可靠性欧美晶振产品应用制造商提供服务。Micro Crystal AG在全球各地设有办事处，为我们的客户提供从设计到大规模生产的深度支持。

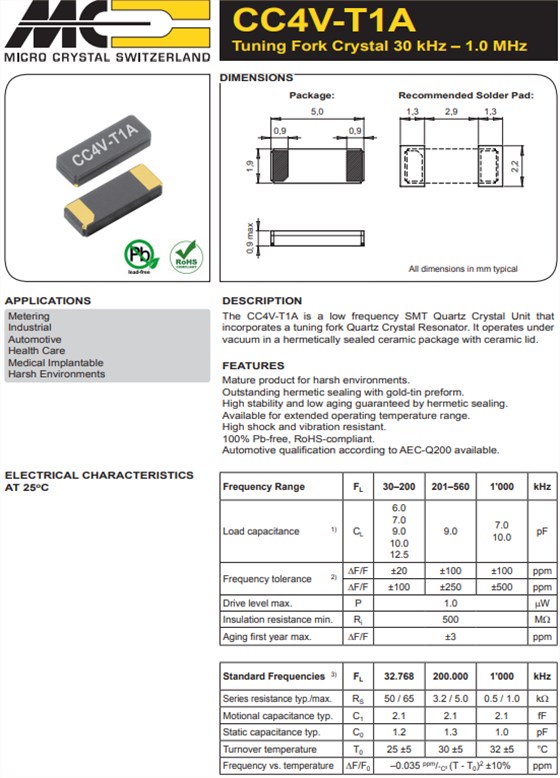

编码CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA，型号CC4V-T1A，CC4V-T1A是一个低频SMT石英晶体单元，它包含了一个音叉石英晶体谐振器。它在真空下工作，在一个密封的陶瓷包装与陶瓷盖。产品特点：具有成熟的产品，为恶劣的环境。杰出的密封与金锡预制件。采用密封性密封来保证，稳定性高，老化程度低。可用于更扩展的工作温度范围。高冲击和抗振动能力。100%无铅，rohs兼容。根据AEC-Q200提供的汽车资格认证.
应用:测量,工业,汽车,医疗保健,医疗植入式,恶劣的环境.
