BC30CCD112.5-32.768K,8038mm,32.768KHZ晶体,Bomar通信晶振,进口无源晶振,Bomar小体积晶振,欧美音叉晶体,陶瓷晶振,32.768KHZ无源晶体,无源贴片晶振,8038mm晶体谐振器,SMD晶体,尺寸8.0x3.8mm,频率32.768KHZ,负载12.5pF,耐热性晶振,高稳定晶振,高性能晶振,低损耗晶振,芯片卡晶振,移动设备晶振,无线通信晶振,记秒器晶振,实时实时晶振,智能手表晶振.
BC30CCD112.5-32.768K,8038mm,32.768KHZ晶体,Bomar通信晶振特点:

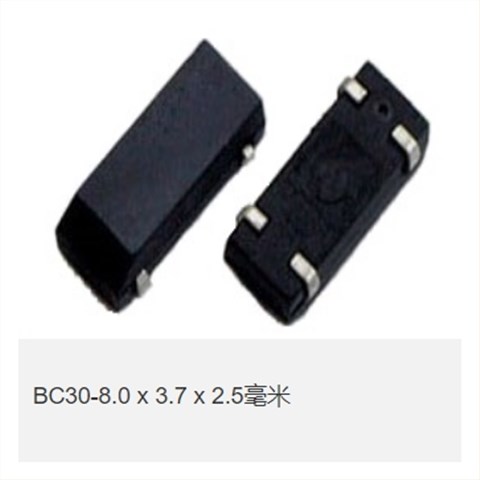

BC30系列是一种微型塑料smd晶体。卓越的抗冲击性和耐热性。
可能的应用包括移动通信、芯片卡、实时时钟和无线通信。
回流焊接
工作温度-40º至+85ºC。

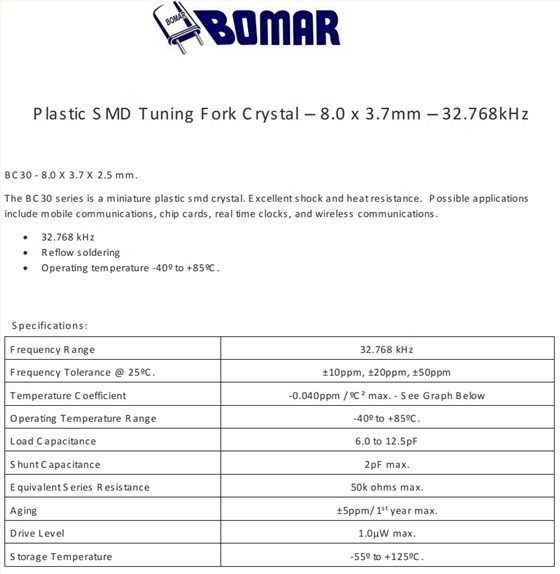

BC30CCD112.5-32.768K,8038mm,32.768KHZ晶体,Bomar通信晶振 参数表
| Frequency Range | 32.768 kHz | |||||||||
| Frequency Tolerance @ 25ºC. | ±10ppm, ±20ppm, ±50ppm | |||||||||
| Temperature Coefficient | -0.040ppm / ºC² max. - See Graph Below | |||||||||
| Operating Temperature Range | -40º to +85ºC. | |||||||||
| Load Capacitance | 6.0 to 12.5pF | |||||||||
| Shunt Capacitance | 2pF max. | |||||||||
| Equivalent Series Resistance | 50k ohms max. | |||||||||
| Aging | ±5ppm/ 1styear max. | |||||||||
| Drive Level | 1.0µW max. | |||||||||
| Storage Temperature | -55º to +125ºC. | |||||||||

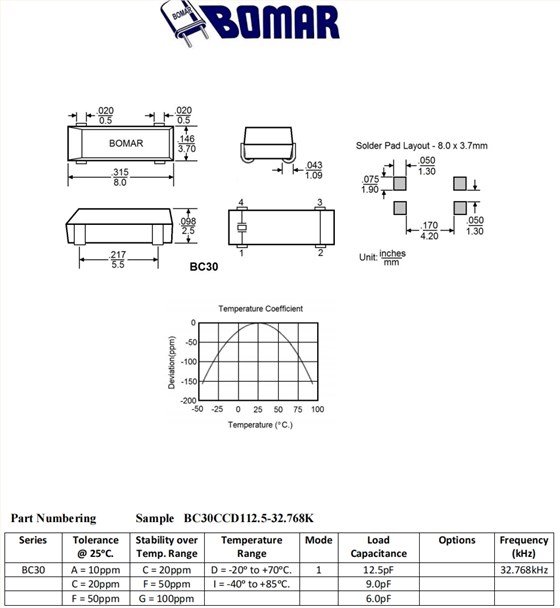

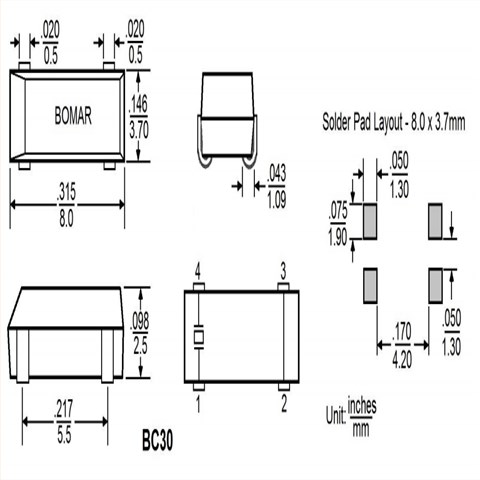

BC30CCD112.5-32.768K,8038mm,32.768KHZ晶体,Bomar通信晶振 尺寸图
