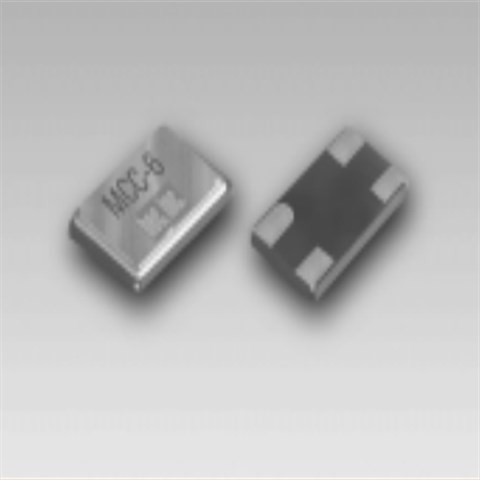

HE-MCC-6A-40.000F-16-E,HEC无源晶体,6035mm笔记本电脑晶振,HE-MCC-6系列,美国进口晶振,进口贴片晶振,SMD晶体,水晶振动子,6035mm无源晶振,40MHZ贴片晶振,尺寸6.0x3.5mm,频率40MHZ,负载16pF,低老化晶振,无铅晶振,低损耗晶振,无线应用晶振,通讯产品晶振,笔记本电脑晶振,寻呼机晶振,测试设备晶振.
HE-MCC-6A-40.000F-16-E,HEC无源晶体,6035mm笔记本电脑晶振,HE-MCC-6系列特点:
体积仅0.023ccSMD晶体
提供高频基本模式
宽频率范围
卓越的老化特性
HE-MCC-6A-40.000F-16-E,HEC无源晶体,6035mm笔记本电脑晶振,HE-MCC-6系列 参数表
| ELECTRICAL SPECIFICATIONS / PART NUMBERING GUIDE | |||||||||||||||||||||
| PARAMETERS | CONDITIONS | MINIMUM | STANDARD | MAXIMUM | UNIT | ||||||||||||||||
| FREQUENCY RANGE |
|
40.000 |
|
MHz | |||||||||||||||||
| FREQ. TOLERANCE | at 25 °C | -50* | PPM | ||||||||||||||||||
|
FREQ. STABILITY (reference @ 25°C) |
-10 °C to +60 °C | -50* | PPM | ||||||||||||||||||
| OPERATING TEMPERATURE | -10 °C to +60 °C // -40 °C to +85 °C Optional | °C | |||||||||||||||||||
| STORAGE TEMPERATURE | -30 °C to +85 °C // -55 °C to +125 °C Optional | °C | |||||||||||||||||||
| SHUNT CAPACITANCE (CO) | 5.0 | pF | |||||||||||||||||||
| LOAD CAPACITANCE (CL) | To be specified | 10.0 | 18.0 | pF | |||||||||||||||||
| DRIVE LEVEL | 12.800 - 80.000 MHz | 0.1 | 0.5 | mW | |||||||||||||||||
| AGING CHARACTERISTICS |
± 2 PPM max. @ 25 °C per year |
||||||||||||||||||||
HE-MCC-6A-40.000F-16-E,HEC无源晶体,6035mm笔记本电脑晶振,HE-MCC-6系列 尺寸图
