NX3215SA-32.768K-STD-MUA-8,3215mm,NDK手表晶振，日本进口晶振，NDK晶振，型号：NX3215SA，编码为：NX3215SA-32.768K-STD-MUA-8，负载：12.5pF，频率：32.768KHz，精度：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：3.2x1.5x0.8mm，两脚贴片晶振，音叉晶体，石英晶振，SMD晶振，无源晶振，石英晶体谐振器，具有超小型晶振，轻薄型晶振，高品质晶振，耐热及耐环境等特点。最适合应用于：移动设备晶振，通信晶振，消费类设备晶振，OA（办公自动化）和AV（视听）应用程序，钟表电子晶振，可穿戴设备晶振等应用。
NX3215SA-32.768K-STD-MUA-8,3215mm,NDK手表晶振,产品特点:
●小巧、轻薄的音叉晶体单元
●卓越的电气特性，SMD晶振
● 回流温度曲线（可用于无铅焊接）
NX3215SA-32.768K-STD-MUA-8,3215mm,NDK手表晶振,参数表
Item
NX3215SA
Main Application
For OA / AV / Mobile Communication
For Automotive
Nominal Frequency
32.768kHz
Operating Temperature Range
−40 to +85°C
−40 to +125°C
Storage Temperature Range
−40 to +85°C
−40 to +125°C
Level of Drive
0.1µW(Max. 0.5µW )
Frequency Tolerance (25 ±3 °C)
±20 × 10−6
Turning Point
+25°C ± 5°C
Temperature Coefficient
−0.04 × 10−6/°C2Max.
Load Capacitance
6.0pF
9.0pF
12.5pF
6.0pF
9.0pF
12.5pF
Equivalent Series Resistance
Max. 70kΩ
Max. 80kΩ
Shunt Capacitance
Typ. 1.0pF / Max.1.5pF
Insulation Resistance
Min. 500MΩ
Specifications Number
STD-MUA-14
STD-MUA-9
STD-MUA-8
STD-MUS-4
STD-MUS-3
STD-MUS-2

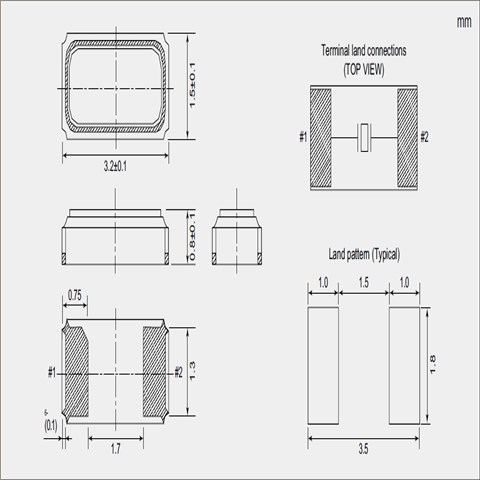

NX3215SA-32.768K-STD-MUA-8,3215mm,NDK手表晶振,尺寸图
