32.768KHz/12pF/±20ppm/Q13MC4061000600/MC-406微型计算机晶振

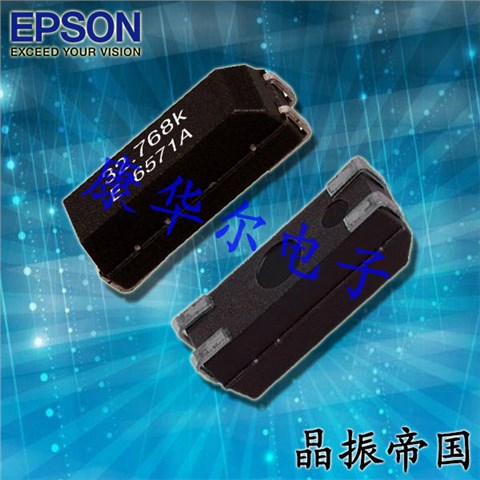

32.768KHz/12pF/±20ppm/Q13MC4061000600/MC-406微型计算机晶振，日本进口晶振，EPSON爱普生晶振，型号：MC-406，编码为：Q13MC4061000600，频率为：32.768KHz，是一款小体积晶振尺寸10.41x4.06x3.6mm封装，四脚贴片晶振，石英晶振，无源晶振，石英晶体谐振器，无铅环保晶振，工作温度范围：-40℃至+85℃，小体积轻薄型，应用于：时钟电子晶振，微型计算机晶振，仪器仪表晶振，电脑主板晶振，通讯设备晶振，无线蓝牙晶振，物联网等应用。

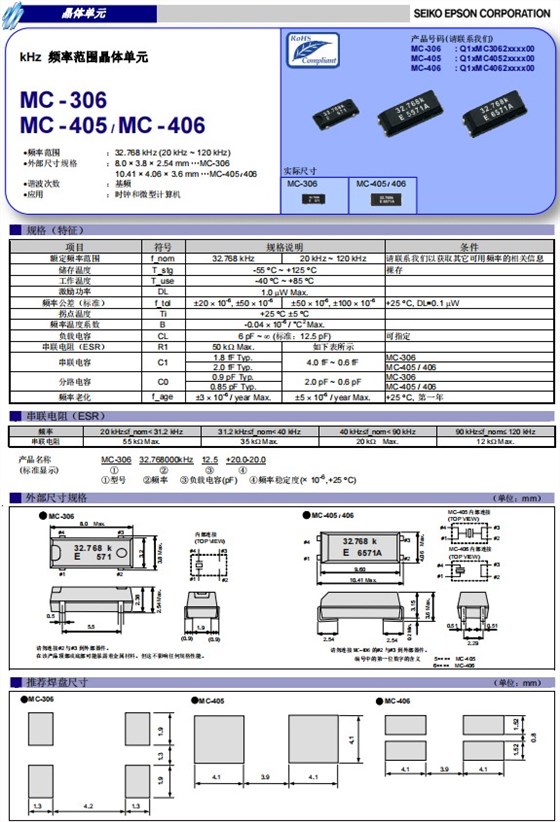

32.768KHz/12pF/±20ppm/Q13MC4061000600/MC-406微型计算机晶振，参数图

项目	型号	MC-306 MC-405 MC-406		条件
额定频率范围	f_nom	32.768 kHz	32 kHz ~ 100 kHz	请联系我们以便获取其它可用频率的相关信息
储存温度	T_stg	-55°C ~ +125°C		裸存
工作温度	T_use	-40°C ~ +85°C
激励功率	DL	1.0mW Max.		工作激励功率0.5mW Max.
频率公差（标准）	f_tol	±20x10-6,±50x10-6	±50x10-6,±100x10-6	+25℃°C, DL=0.1mW
拐点温度	Ti	+25°C±5°C
频率温度系数	B	-0.04x10-6 /℃2 Max.
负载电容	CL	6pF~ (标准：12.5pF)		可指定
串联电阻（ESR）	R1	50 kΩMax.	如下表所示
串联电容	C1	1.8 fF Typ.	4.0 fF~ 0.6 fF	MC-306
串联电容	C1	2.0 fF Typ.	4.0 fF~ 0.6 fF	MC-405/406
分路电容	C0	0.9 fF Typ.	2.0 pF ~ 0.6 pF	MC-306
分路电容	C0	0.85 pF Typ.	2.0 pF ~ 0.6 pF	MC-405/406
频率老化	f_age	±3x10-6 / year Max.	±5x10-6 / year Max.	+25℃,第一年

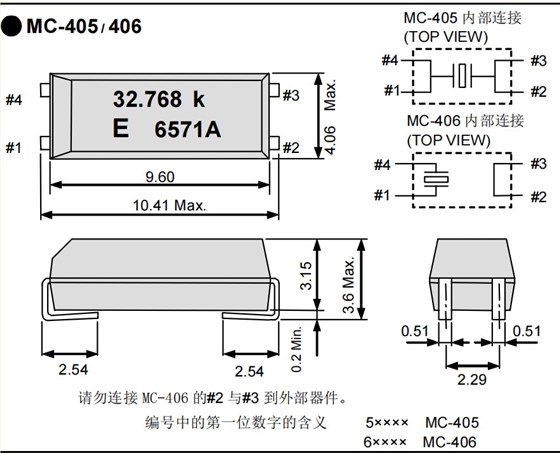

32.768KHz/12pF/±20ppm/Q13MC4061000600/MC-406微型计算机晶振，尺寸图

贴片晶振	型号	频率	尺寸	负载	频率 @+25°C	工作温度
Q13MC4061000200	MC-406	32.768kHz	10.41x4.06x3.6mm	12.5 pF	+/-10.0 ppm	-40℃~+85℃
Q13MC4061000400	MC-406	32.768kHz	10.41x4.06x3.6mm	9 pF	+/-20.0 ppm	-40℃~+85℃
Q13MC4061000500	MC-406	32.768kHz	10.41x4.06x3.6mm	6 pF	+/-10.0 ppm	-40℃~+85℃
Q13MC4061000600	MC-406	32.768kHz	10.41x4.06x3.6mm	12 pF	+/-20.0 ppm	-40℃~+85℃
Q13MC4061000900	MC-406	32.768kHz	10.41x4.06x3.6mm	10 pF	+/-20.0 ppm	-40℃~+85℃
Q13MC4061001000	MC-406	32.768k	10.41x4.06x3.6mm	7 pF	+/-20.0 ppm	-40℃~+85℃
Q13MC4061001100	MC-406	32.768kHz	10.41x4.06x3.6mm	16 pF	+/-20.0 ppm	-40℃~+85℃
Q13MC4061001500	MC-406	32.768kHz	10.41x4.06x3.6mm	9.5 pF	+/-20.0 ppm	-40℃~+85℃
Q13MC4061001900	MC-406	32.768kHz	10.41x4.06x3.6mm	15 pF	+/-100 ppm	-40℃~+85℃
Q13MC4061002100	MC-406	32.768kHz	10.41x4.06x3.6mm	8 pF	+/-20.0 ppm	-40℃~+85℃
Q13MC4061002500	MC-406	32.768kHz	10.41x4.06x3.6mm	12 pF	+/-50.0 ppm	-40℃~+85℃
Q13MC4061003000	MC-406	32.768kHz	10.41x4.06x3.6mm	16 pF	+/-50.0 ppm	-40℃~+85℃
Q13MC4061003300	MC-406	32.768kHz	10.41x4.06x3.6mm	6 pF	+/-50.0 ppm	-40℃~+85℃
Q13MC4061003700	MC-406	32.768kHz	10.41x4.06x3.6mm	15 pF	+/-20.0 ppm	-40℃~+85℃
Q13MC4061004000	MC-406	32.768kHz	10.41x4.06x3.6mm	18 pF	+/-20.0 ppm	-40℃~+85℃
Q13MC4062000100	MC-406	32.768kHz	10.41x4.06x3.6mm	12.5 pF	+/-20.0 ppm	-40℃~+85℃
Q13MC4062000300	MC-406	32.768kHz	10.41x4.06x3.6mm	6 pF	+/-20.0 ppm	-40℃~+85℃
Q13MC4062001800	MC-406	32.768kHz	10.41x4.06x3.6mm	12.5 pF	+/-50.0 ppm	-40℃~+85℃
Q13MC4062003100	MC-406	32.768kHz	10.41x4.06x3.6mm	22.9 pF	+/-20.0 ppm	-40℃~+85℃
Q13MC4062003900	MC-406	32.768kHz	10.41x4.06x3.6mm	22 pF	+/-20.0 ppm	-40℃~+85℃
Q13MC4062004100	MC-406	32.768kHz	10.41x4.06x3.6mm	12 pF	+/-10.0 ppm	-40℃~+85℃
Q13MC4062004800	MC-406	32.768kHz	10.41x4.06x3.6mm	8 pF	+/-10.0 ppm	-40℃~+85℃
Q14MC4061000600	MC-406	40.000kHz	10.41x4.06x3.6mm	12.5 pF	+/-100 ppm	-40℃~+85℃
Q14MC4061000900	MC-406	100.000kHz	10.41x4.06x3.6mm	16 pF	+/-100 ppm	-40℃~+85℃
Q14MC4061001200	MC-406	32.000kHz	10.41x4.06x3.6mm	12.5 pF	+/-50.0 ppm	-40℃~+85℃
Q14MC4061001300	MC-406	120.000kHz	10.41x4.06x3.6mm	11 pF	+/-100 ppm	-40℃~+85℃
Q14MC4061001900	MC-406	31.250kHz	10.41x4.06x3.6mm	12.5 pF	+/-50.0 ppm	-40℃~+85℃
Q14MC4061004700	MC-406	141.200kHz	10.41x4.06x3.6mm	12 pF	+/-50.0 ppm	-40℃~+85℃
Q14MC4062001500	MC-406	134.700kHz	10.41x4.06x3.6mm	12 pF	+/-50.0 ppm	-40℃~+85℃
Q14MC4062004500	MC-406	144.600kHz	10.41x4.06x3.6mm	12 pF	+/-50.0 ppm	-40℃~+85℃
