SXT114无线蓝牙晶振,SXT11410CC27-38.400M,Suntsu松图石英晶振，尺寸1.6x1.2mm，频率38.4MHZ，欧美进口晶振，美国Suntsu晶振，贴片石英晶体，石英振动子，无源石英晶振，无源晶振，SMD晶振，石英晶体，1612mm贴片晶振，四脚贴片晶振，轻薄型晶体，无铅环保晶振，蓝牙晶振，无线局域网晶振，高密度应用晶振，小型设备晶振，便携式设备晶振，网络设备晶振，车载音响晶振，低损耗晶振，低耗能晶振，高性能晶振，高品质晶振，具有良好的稳定性能。
SMD晶体产品适合用于蓝牙，无线局域网，高密度应用，小型设备，便携式设备，网络设备，车载音响等应用。SXT114无线蓝牙晶振,SXT11410CC27-38.400M,Suntsu松图石英晶振.

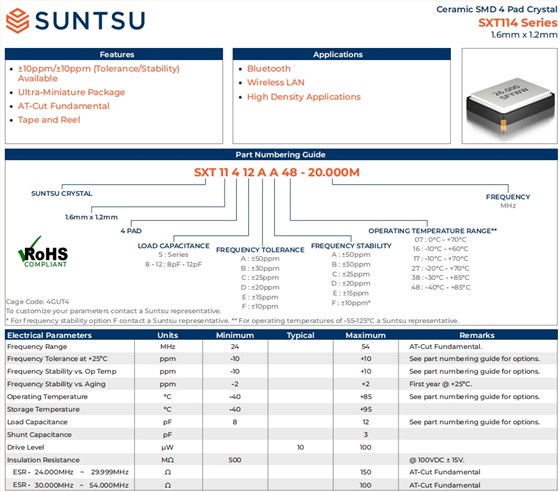

SXT114无线蓝牙晶振,SXT11410CC27-38.400M,Suntsu松图石英晶振 参数表
| Electrical ParametersUnitsMinimumTypicalMaximumRemarks | ||||||||||||||||||||||||||||||||||||
| Frequency Range | MHz |
|
38.4 |
|
AT-Cut Fundamental. | |||||||||||||||||||||||||||||||
| Frequency Tolerance at +25ºC | ppm | -10 | +10 | See part numbering guide for options. | ||||||||||||||||||||||||||||||||
| Frequency Stability vs. Op Temp | ppm | -10 | +10 | See part numbering guide for options. | ||||||||||||||||||||||||||||||||
| Frequency Stability vs. Aging | ppm | -2 | +2 | First year @ +25ºC. | ||||||||||||||||||||||||||||||||
| Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | ||||||||||||||||||||||||||||||||
| Storage Temperature | °C | -40 | +95 | |||||||||||||||||||||||||||||||||
| Load Capacitance | pF | 8 | 12 | See part numbering guide for options. | ||||||||||||||||||||||||||||||||
| Shunt Capacitance | pF | 3 | ||||||||||||||||||||||||||||||||||
| Drive Level | µW | 10 | 100 | |||||||||||||||||||||||||||||||||
| Insulation Resistance | M? | 500 | @ 100VDC ± 15V. | |||||||||||||||||||||||||||||||||
| ESR -24.000MHz~29.999MHz | ? | 150 | AT-Cut Fundamental | |||||||||||||||||||||||||||||||||
| ESR -30.000MHz~54.000MHz | ? | 100 | AT-Cut Fundamental | |||||||||||||||||||||||||||||||||

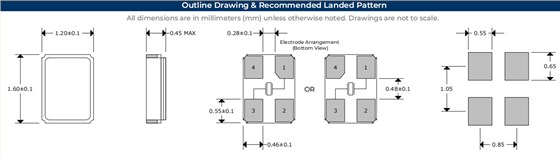

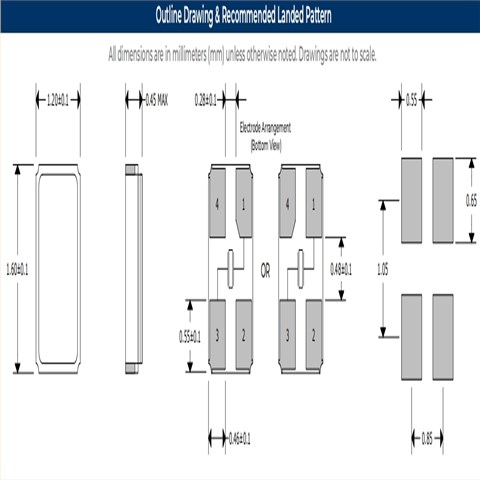

| Outline Drawing & Recommended Landed Pattern | ||||||||||||||||||||||||||||||||||||
SXT114无线蓝牙晶振,SXT11410CC27-38.400M,Suntsu松图石英晶振尺寸图

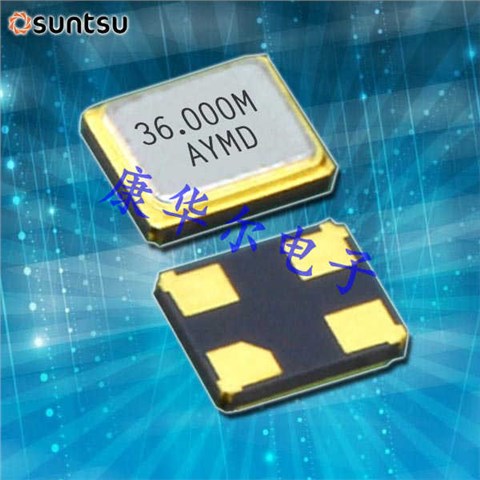

SXT114无线蓝牙晶振,SXT11410CC27-38.400M,Suntsu松图石英晶振
晶振产品特性：
±10ppm/±10ppm（公差/稳定性）可获得的
超小型封装
AT切割基础
磁带和卷轴
| Part Number | Manufacturer | Package Size | Load Cap. | Freq. Tolerance | Freq. Stability | Operating Temp. | Frequency |
| SXT11410CC07-38.400M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | 0°C - +70°C | 38.400M |
| SXT11410CC07-40.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | 0°C - +70°C | 40.000M |
| SXT11410CC16-24.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -10°C - +60°C | 24.000M |
| SXT11410CC16-25.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -10°C - +60°C | 25.000M |
| SXT11410CC16-26.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -10°C - +60°C | 26.000M |
| SXT11410CC16-27.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -10°C - +60°C | 27.000M |
| SXT11410CC16-27.120M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -10°C - +60°C | 27.120M |
| SXT11410CC16-30.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -10°C - +60°C | 30.000M |
| SXT11410CC16-32.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -10°C - +60°C | 32.000M |
| SXT11410CC16-38.400M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -10°C - +60°C | 38.400M |
| SXT11410CC16-40.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -10°C - +60°C | 40.000M |
| SXT11410CC17-24.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -10°C - +70°C | 24.000M |
| SXT11410CC17-25.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -10°C - +70°C | 25.000M |
| SXT11410CC17-26.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -10°C - +70°C | 26.000M |
| SXT11410CC17-27.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -10°C - +70°C | 27.000M |
| SXT11410CC17-27.120M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -10°C - +70°C | 27.120M |
| SXT11410CC17-30.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -10°C - +70°C | 30.000M |
| SXT11410CC17-32.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -10°C - +70°C | 32.000M |
| SXT11410CC17-38.400M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -10°C - +70°C | 38.400M |
| SXT11410CC17-40.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -10°C - +70°C | 40.000M |
| SXT11410CC27-24.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -20°C - +70°C | 24.000M |
| SXT11410CC27-25.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -20°C - +70°C | 25.000M |
| SXT11410CC27-26.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -20°C - +70°C | 26.000M |
| SXT11410CC27-27.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -20°C - +70°C | 27.000M |
| SXT11410CC27-27.120M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -20°C - +70°C | 27.120M |
| SXT11410CC27-30.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -20°C - +70°C | 30.000M |
| SXT11410CC27-32.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -20°C - +70°C | 32.000M |
| SXT11410CC27-38.400M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -20°C - +70°C | 38.400M |
| SXT11410CC27-40.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -20°C - +70°C | 40.000M |
| SXT11410CC38-24.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -30°C - +85°C | 24.000M |
| SXT11410CC38-25.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -30°C - +85°C | 25.000M |
| SXT11410CC38-26.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -30°C - +85°C | 26.000M |
| SXT11410CC38-27.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -30°C - +85°C | 27.000M |
| SXT11410CC38-27.120M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -30°C - +85°C | 27.120M |
| SXT11410CC38-30.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -30°C - +85°C | 30.000M |
| SXT11410CC38-32.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -30°C - +85°C | 32.000M |
| SXT11410CC38-38.400M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -30°C - +85°C | 38.400M |
| SXT11410CC38-40.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -30°C - +85°C | 40.000M |
| SXT11410CC48-24.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -40°C - +85°C | 24.000M |
| SXT11410CC48-25.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -40°C - +85°C | 25.000M |
| SXT11410CC48-26.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -40°C - +85°C | 26.000M |
| SXT11410CC48-27.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -40°C - +85°C | 27.000M |
| SXT11410CC48-27.120M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -40°C - +85°C | 27.120M |
| SXT11410CC48-30.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -40°C - +85°C | 30.000M |
| SXT11410CC48-32.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -40°C - +85°C | 32.000M |
| SXT11410CC48-38.400M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -40°C - +85°C | 38.400M |
| SXT11410CC48-40.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±25ppm | ±25ppm | -40°C - +85°C | 40.000M |
| SXT11410DA07-24.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | 0°C - +70°C | 24.000M |
| SXT11410DA07-25.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | 0°C - +70°C | 25.000M |
| SXT11410DA07-26.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | 0°C - +70°C | 26.000M |
| SXT11410DA07-27.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | 0°C - +70°C | 27.000M |
| SXT11410DA07-27.120M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | 0°C - +70°C | 27.120M |
| SXT11410DA07-30.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | 0°C - +70°C | 30.000M |
| SXT11410DA07-32.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | 0°C - +70°C | 32.000M |
| SXT11410DA07-38.400M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | 0°C - +70°C | 38.400M |
| SXT11410DA07-40.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | 0°C - +70°C | 40.000M |
| SXT11410DA16-24.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -10°C - +60°C | 24.000M |
| SXT11410DA16-25.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -10°C - +60°C | 25.000M |
| SXT11410DA16-26.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -10°C - +60°C | 26.000M |
| SXT11410DA16-27.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -10°C - +60°C | 27.000M |
| SXT11410DA16-27.120M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -10°C - +60°C | 27.120M |
| SXT11410DA16-30.000M | 美国松图晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -10°C - +60°C | 30.000M |
| SXT11410DA16-32.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -10°C - +60°C | 32.000M |
| SXT11410DA16-38.400M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -10°C - +60°C | 38.400M |
| SXT11410DA16-40.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -10°C - +60°C | 40.000M |
| SXT11410DA17-24.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -10°C - +70°C | 24.000M |
| SXT11410DA17-25.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -10°C - +70°C | 25.000M |
| SXT11410DA17-26.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -10°C - +70°C | 26.000M |
| SXT11410DA17-27.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -10°C - +70°C | 27.000M |
| SXT11410DA17-27.120M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -10°C - +70°C | 27.120M |
| SXT11410DA17-30.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -10°C - +70°C | 30.000M |
| SXT11410DA17-32.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -10°C - +70°C | 32.000M |
| SXT11410DA17-38.400M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -10°C - +70°C | 38.400M |
| SXT11410DA17-40.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -10°C - +70°C | 40.000M |
| SXT11410DA27-24.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -20°C - +70°C | 24.000M |
| SXT11410DA27-25.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -20°C - +70°C | 25.000M |
| SXT11410DA27-26.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -20°C - +70°C | 26.000M |
| SXT11410DA27-27.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -20°C - +70°C | 27.000M |
| SXT11410DA27-27.120M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -20°C - +70°C | 27.120M |
| SXT11410DA27-30.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -20°C - +70°C | 30.000M |
| SXT11410DA27-32.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -20°C - +70°C | 32.000M |
| SXT11410DA27-38.400M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -20°C - +70°C | 38.400M |
| SXT11410DA27-40.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -20°C - +70°C | 40.000M |
| SXT11410DA38-24.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -30°C - +85°C | 24.000M |
| SXT11410DA38-25.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -30°C - +85°C | 25.000M |
| SXT11410DA38-26.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -30°C - +85°C | 26.000M |
| SXT11410DA38-27.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -30°C - +85°C | 27.000M |
| SXT11410DA38-27.120M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -30°C - +85°C | 27.120M |
| SXT11410DA38-30.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -30°C - +85°C | 30.000M |
| SXT11410DA38-32.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -30°C - +85°C | 32.000M |
| SXT11410DA38-38.400M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -30°C - +85°C | 38.400M |
| SXT11410DA38-40.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -30°C - +85°C | 40.000M |
| SXT11410DA48-24.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 24.000M |
| SXT11410DA48-25.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 25.000M |
| SXT11410DA48-26.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 26.000M |
| SXT11410DA48-27.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 27.000M |
| SXT11410DA48-27.120M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 27.120M |
| SXT11410DA48-30.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 30.000M |
| SXT11410DA48-32.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 32.000M |
| SXT11410DA48-38.400M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 38.400M |
| SXT11410DA48-40.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 40.000M |
| SXT11410DB07-24.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 24.000M |
| SXT11410DB07-25.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 25.000M |
| SXT11410DB07-26.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 26.000M |
| SXT11410DB07-27.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 27.000M |
| SXT11410DB07-27.120M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 27.120M |
| SXT11410DB07-30.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 30.000M |
| SXT11410DB07-32.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 32.000M |
| SXT11410DB07-38.400M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 38.400M |
| SXT11410DB07-40.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 40.000M |
| SXT11410DB16-24.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +60°C | 24.000M |
| SXT11410DB16-25.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +60°C | 25.000M |
| SXT11410DB16-26.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +60°C | 26.000M |
| SXT11410DB16-27.000M | Suntsu晶振 | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +60°C | 27.000M |
