EPSON绿色环保的SMD带电压晶振X1G004271001200，当下市场对于晶体振荡器需求远远超乎我们的想象，随着高科技的发展需求，有源晶振和无源晶振将会大量占领整个市场，而且振荡器的用途也越来越广泛,但是与普通晶振价格相比,价格往往高于普通晶振几倍。例如在无线电测量仪器中,它产生各种频段的正弦信号电压：在热加工、热处理、超声波加工和某些医疗设备中,它产生大功率的高频电能对负载加热。

EPSON绿色环保的SMD带电压晶振X1G004271001200，在未来，随着国内本土企业技术水平的提高，产品品质的提升，进口厂商市场份额将被压缩。因此，未来大量的产品将会需要大量贴片有源晶振产品，以及石英晶体元件等产品，由于晶体元器件行业市场集中度将得到提升，呈现“强者恒强”、“国产替代进口”的竞争态势。有源晶振自其诞生以来就一直在通信、电子、航海航空航天及医学等领域扮演重要的角色,具有广泛的用途。

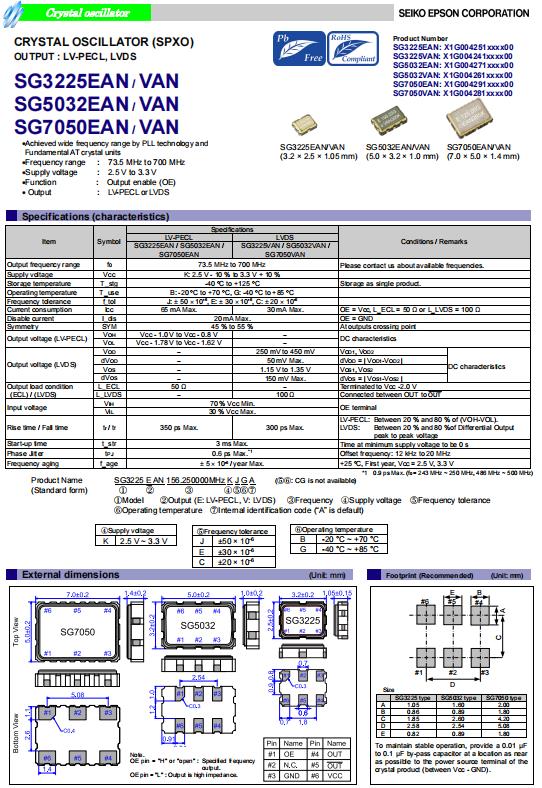

Product Number	EPSON晶振	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.
X1G004451021800	SG5032CAN	72.000000 MHz	5.00 x 3.20 x 1.10 mm	CMOS	2.250 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G004271000100	SG5032EAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004271000400	SG5032EAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004271001200	SG5032EAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004271001300	SG5032EAN	155.520000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004271001400	SG5032EAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004271002000	SG5032EAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004271003300	SG5032EAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004271010900	SG5032EAN	250.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004271011600	SG5032EAN	133.330000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004271011700	SG5032EAN	133.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004271011800	SG5032EAN	133.333000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004271011900	SG5032EAN	174.703125 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C	+/-20 ppm
X1G004271012100	SG5032EAN	161.132813 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004271012200	SG5032EAN	425.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004271012300	SG5032EAN	500.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1M000461000100	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.375 to 2.625 V	0 to 70 °C	+/-100 ppm
X1M000461000200	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.970 to 3.630 V	0 to 70 °C	+/-50 ppm
X1M000461000300	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C	+/-50 ppm
X1M000461000600	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C	+/-100 ppm
X1G005581001100	SG-8018CB	25.000000 MHz	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
