EPSON差分晶振SG2520VGN,X1G0059010008,6G无线晶振

频率:156.25MHZ

尺寸:2.5*2.0mm

EPSON差分晶振SG2520VGN,X1G0059010008,6G无线晶振,尺寸为2.5*2.0mm,频率156.25MHZ,输出逻辑LVDS,差分晶振LVDS,差分石英晶体振荡器,OSC差分石英晶振,进口差分晶振,爱普生差分晶振,有源差分晶振,低电压差分振荡器,低功耗差分晶振,通讯差分晶振,6G模块差分晶振,光通讯差分信号输出LVDS,6G将使网络通信流量呈指数级增长。6G通信网络要求高速宽频带,同时最大限度地减少噪音。这将实现与高频率,低抖动用于通信设备的参考时钟,其中将使用小尺寸光模块。

SG2016VGN/SG2520VGN是非常受欢迎的SG3225VEN系列的下一代产品具有广泛的可用频率范围,低抖动和改进的频率容限的功能组合由于在更小的封装中使用了带有温度补偿的内部设计IC,因此性能更好。LVDS差分晶体产品非常适合用于网络设备(路由器、交换机、光模块等),数据中心,测试和测量设备,工厂自动化,高速转换器,如ADC和DAC等领域。EPSON差分晶振SG2520VGN,X1G0059010008,6G无线晶振.
订购热线:0755-27838351
QQ咨询 点击这里给我发消息

TC-1

EPSON差分晶振SG2520VGN,X1G0059010008,6G无线晶振,尺寸为2.5*2.0mm,频率156.25MHZ,输出逻辑LVDS,差分晶振LVDS,差分石英晶体振荡器,OSC差分石英晶振,进口差分晶振,爱普生差分晶振,有源差分晶振,低电压差分振荡器,低功耗差分晶振,通讯差分晶振,6G模块差分晶振,光通讯差分信号输出LVDS,6G将使网络通信流量呈指数级增长。6G通信网络要求高速宽频带,同时最大限度地减少噪音。这将实现与高频率,低抖动用于通信设备的参考时钟,其中将使用小尺寸光模块。

SG2016VGN/SG2520VGN是非常受欢迎的SG3225VEN系列的下一代产品具有广泛的可用频率范围,低抖动和改进的频率容限的功能组合由于在更小的封装中使用了带有温度补偿的内部设计IC,因此性能更好。LVDS差分晶体产品非常适合用于网络设备(路由器、交换机、光模块等),数据中心,测试和测量设备,工厂自动化,高速转换器,如ADC和DAC等领域。EPSON差分晶振SG2520VGN,X1G0059010008,6G无线晶振.

TC-2

EPSON差分晶振SG2520VGN,X1G0059010008,6G无线晶振       参数图

Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Maximum supply voltage VCC -0.3 - 4.0 V
Input voltage Vin -0.3 - VCC + 0.5 V        一一
OE/ST terminal
Storage temperature range T_stg -55 - +125 °C
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Supply voltage VCC 1.71 1.8 1.89 V Suffix: E, Output option: A or C
2.375 2.5 2.625 V Suffix: D
3.135 3.3 3.465 V Suffix: C
Supply voltage GND 0.0 0.0 0.0 V
Operating temperature range T_use -40 +25 +85 °C Suffix: G
-40 +25 +105 °C Suffix: H
LVDS load condition L_LVDS 100 Ω
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Output frequency *1 fo

156.25 MHz
Frequency tolerance *2 f_tol -25 - +25 ×10-6 Suffix: D
-50 - +50 ×10-6 Suffix: J
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Startup time t_str - - 10 ms t = 0 at 90 % VCC
Current consumption ICC - - 25 mA Output option: A, fo < 212 MHz
VCC  = 2.5 V, 3.3 V Typ.
- - 28 mA Output option: A, fo ≥ 212 MHz
VCC  = 2.5 V, 3.3 V Typ.
- - 30 mA Output option: B, fo < 212 MHz
VCC  = 2.5 V, 3.3 V Typ.
- - 35 mA Output option: B, fo ≥ 212 MHz
VCC  = 2.5 V, 3.3 V Typ.
- - 25 mA Output option: C, fo < 212 MHz
VCC  = 2.5 V, 3.3 V Typ.
- - 28 mA Output option: C,
212 MHz ≤ fo < 392 MHz
VCC  = 2.5 V, 3.3 V Typ.
- - 30 mA Output option: C, fo ≥ 392 MHz
VCC  = 2.5 V, 3.3 V Typ.
- - 25 mA Output option: A or C
VCC  = 1.8 V Typ.
Disable current I_dis - - 20 mA OE = GND
Stand-by current I_std - - 30 μA  = GND, T_use Max. = +85 °C
- - 60 μA  = GND, T_use Max. = +105 °C
Rise time / Fall time tr / tf - - 0.35 ns 20 % - 80 % of VSW
Symmetry SYM 45 50 55 % At output crossing point
Output voltage VOD 250 - 450 mV Output option: A
400 - 800 mV Output option: B
Not available for VCC  = 1.8 V Typ.
300 - 600 mV Output option: C
dVOD - - 50 mV |VOD1 - VOD2 |
VOS 1.15 - 1.35 V VCC = 2.5 V, 3.3 V Typ.
0.65 - 0.85 V VCC = 1.8 V Typ.
dVOS - - 50 mV |VOS1 - VOS2 |
Differential swing VSW 500 - 900 mV Output option: A
800 - 1 600 mV Output option: B
Not available for VCC  = 1.8 V Typ.
600 - 1 200 mV Output option: C
Input voltage VIH 70 % VCC - - V OE/    terminal
VIL - - 30 % VCC V
Output disable time (OE) tstp_oe - - 100 ns OE terminal HIGH → LOW
Output disable time (ST) tstp_st - - 100 ns  terminal HIGH → LOW
Output enable time (OE) tsta_oe - - 500 ns OE terminal LOW → HIGH
Output enable time (ST) tsta_st - - 10 ms  terminal LOW → HIGH
Phase jitter
VCC = 2.5 V, 3.3 V Typ.
Offset frequency
   fo < 50 MHz; 12 kHz to 5 MHz
   fo ≥ 50 MHz: 12 kHz to 20 MHz
tPJ - - 250 fs fo < 100 MHz
- - 100 fs 100 MHz ≤ fo ≤ 156 MHz
- - 60 fs 156 MHz < fo ≤ 212 MHz
- - 50 fs fo > 212 MHz
Phase jitter
VCC = 1.8 V Typ.
Offset frequency
   fo < 50 MHz: 12 kHz to 5 MHz
   fo ≥ 50 MHz: 12 kHz to 20 MHz
- - 400 fs fo < 100 MHz
- - 130 fs 100 MHz ≤ fo ≤ 156 MHz
- - 70 fs 156 MHz < fo ≤ 212 MHz
- - 60 fs fo > 212 MHz
TC-3

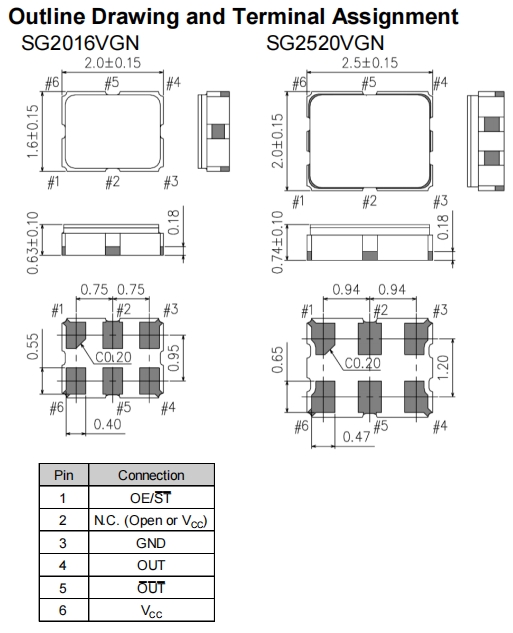

EPSON差分晶振SG2520VGN,X1G0059010008,6G无线晶振       尺寸图SG2016VGN SG2520VGN

OSC晶振产品特性:

晶体振荡器(SPXO)

频率范围(fo): 25MHz至500MHz

输出:LVDS

电源电压:1.8 V型。/ 2.5 V/ 3.3 V类型

工作温度:-40℃~ +105℃

低相位抖动:38fs(fo = 156.25MHz)

SG2016VGN SG2520VGN 1

更多相关日本EPSON爱普生晶振型号

编码 品牌 型号 频率 尺寸 输出方式 电源电压 工作温度
X1M0003510037 爱普生晶振 XG-2121CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510038 爱普生晶振 XG-2121CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1M0003510039 爱普生晶振 XG-2121CA 200.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510040 爱普生晶振 XG-2121CA 250.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003610001 爱普生晶振 XG-2103CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003610002 爱普生晶振 XG-2103CA 133.333333 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0004210002 爱普生晶振 MG7050VAN 212.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0004210003 爱普生晶振 MG7050VAN 156.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0004210004 爱普生晶振 MG7050VAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.375 to 2.625 V -20 to 70 °C
X1M0004210005 爱普生晶振 MG7050VAN 644.531250 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.375 to 2.625 V -20 to 70 °C
X1M0004210006 爱普生晶振 MG7050VAN 322.265625 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.375 to 2.625 V -20 to 70 °C
X1M0004210007 爱普生晶振 MG7050VAN 156.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210008 爱普生晶振 MG7050VAN 100.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210009 爱普生晶振 MG7050VAN 100.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210010 爱普生晶振 MG7050VAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210011 爱普生晶振 MG7050VAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210012 爱普生晶振 MG7050VAN 156.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210013 爱普生晶振 MG7050VAN 200.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210014 爱普生晶振 MG7050VAN 200.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0004210015 爱普生晶振 MG7050VAN 322.265625 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0004210016 爱普生晶振 MG7050VAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1G0059010001 爱普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 3.135 to 3.465 V -40 to 85 °C
X1G0059010002 爱普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 85 °C
X1G0059010003 爱普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.375 to 2.625 V -40 to 85 °C
X1G0059010004 爱普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 3.135 to 3.465 V -40 to 105 °C
X1G0059010006 爱普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.375 to 2.625 V -40 to 85 °C
X1G0059010007 爱普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 105 °C
X1G0059010008 爱普生晶振 SG2520VGN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.375 to 2.625 V -40 to 105 °C
X1G0059410001 爱普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 3.135 to 3.465 V -40 to 85 °C
X1G0059410002 爱普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.375 to 2.625 V -40 to 85 °C
X1G0059410003 爱普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 105 °C
X1G0059410004 爱普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 85 °C
X1G0059410005 爱普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 3.135 to 3.465 V -40 to 105 °C
X1G0059410006 爱普生晶振 SG2520VHN 155.520000 MHz 2.50 x 2.00 x 0.84 mm LVDS 3.135 to 3.465 V -40 to 85 °C
X1G0059410007 爱普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 85 °C
X1G0059410008 爱普生晶振 SG2520VHN 174.703000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.375 to 2.625 V -40 to 85 °C
X1G0059410009 爱普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.375 to 2.625 V -40 to 105 °C
X1G0059410010 爱普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 3.135 to 3.465 V -40 to 85 °C
X1G0059410011 爱普生晶振 SG2520VHN 156.250000 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 85 °C
X1G0059410603 爱普生晶振 SG2520VHN 400.000000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.970 to 3.465 V -40 to 85 °C
X1G0059410604 爱普生晶振 SG2520VHN 400.000000 MHz 2.50 x 2.00 x 0.84 mm LVDS 2.970 to 3.465 V -40 to 85 °C
X1G0059410605 爱普生晶振 SG2520VHN 467.529297 MHz 2.50 x 2.00 x 0.84 mm LVDS 1.710 to 1.890 V -40 to 85 °C
