Skyworks压控振荡器/515CCA40M0000BAG/Si515低抖动晶振/6G路由器晶振

频率：40MHZ

尺寸：5.0x3.2mm

Skyworks压控振荡器/515CCA40M0000BAG/Si515低抖动晶振/6G路由器晶振，尺寸5.0x3.2mm，频率40MHZ，输出逻辑CMOS，有源贴片晶振，SMD晶体振荡器，oscillator Crystal，压控有源晶振，压控晶体振荡器，CMOS输出有源晶振，CMOS贴片型振荡器，OSC振荡器，5032mm有源晶振，高质量有源晶振，高性能有源晶振，低电压有源晶振，低损耗有源晶振，低相位有源振荡器，低抖动有源晶振，低功耗有源晶振，电信有源晶振，交换机有源晶振，低相噪有源晶振，6G路由器有源晶振，网络设备有源晶振，娱乐设备有源晶振，=具有低抖动低电压低功耗的特点.

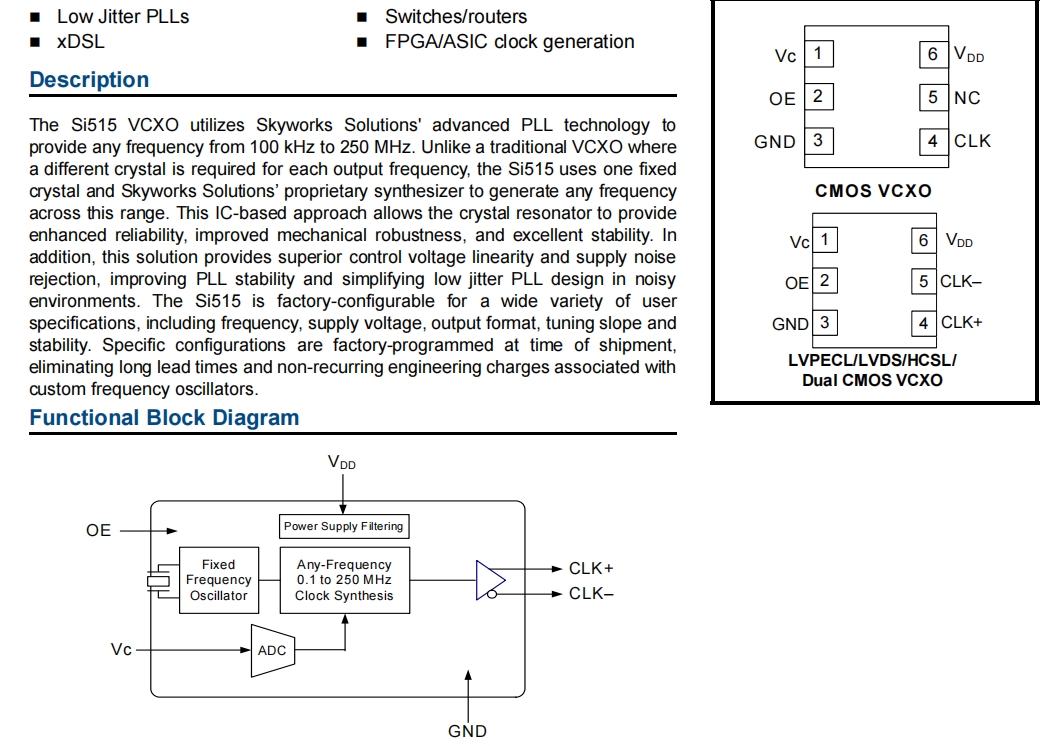

Si515 VCXO压控晶体振荡器利用Skyworks Solutions的先进PLL技术提供从100kHz到250MHz的任何频率。不同于传统的VCXO每个输出频率都需要不同的晶体，Si515使用一个固定的晶体crystal和Skyworks Solutions的专有合成器，可生成任何频率在这个范围内。这种基于IC的方法允许晶体谐振器提供增强的可靠性、改进的机械坚固性和优异的稳定性。Skyworks压控振荡器/515CCA40M0000BAG/Si515低抖动晶振/6G路由器晶振.

订购热线：0755-27838351

Skyworks压控振荡器/515CCA40M0000BAG/Si515低抖动晶振/6G路由器晶振 参数图

Parameter Symbol Test Condition Min Typ Max Unit

Supply Voltage V DD 3.3 V option 2.97 3.3 3.63 V

2.5 V option 2.25 2.5 2.75 V

Supply Current IDD CMOS, 100 MHz,
single-ended — 24 29 mA

LVDS
(output enabled) — 22 26 mA

LVPECL
(output enabled) — 42 46 mA

HCSL
(output enabled) — 44 47 mA

Tristate
(output disabled) — — 22 mA

OE “1” Setting VIH See Note 0.80 x V DD — — V

OE “0” Setting VIL See Note — — 0.20 x V DD V

OE Internal Pull-Up/
Pull-Down Resistor* RI — 45 — kΩ

Operating Temperature TA –40 — 85 oC

Parameter Symbol Test Condition Min Typ Max Unit

Control Voltage Range VC 0.1 x V DD V DD/2 0.9 x V DD V

Control Voltage Tuning Slope
(10 to 90% V DD) Kv Positive slope,
ordering option 60, 90, 120, 150 ppm/V

Kv Variation Kv_var — — ±10 %

Control Voltage Linearity LVC BSL –5 ±1 +5 %

Modulation Bandwidth BW — 10 — kHz

Vc Input Impedance Z VC — 100 — kΩ

Parameter Symbol Test Condition Min Typ Max Unit

Nominal Frequency FO CMOS, Dual CMOS 0.1 — 212.5 MHz

FO LVDS/LVPECL/HCSL 0.1 — 250 MHz

Temperature Stability ST TA = –40 to +85 oC –20 — +20 ppm

Aging A Frequency drift over 10 year life — — ±8.5 ppm

Minimum Absolute Pull Range APR Ordering option ±30, ±50,±80, ±100 ppm

Startup Time TSU Minimum V DD to output fre-
quency (FO) within specification — — 10 ms

Disable Time TD FO  > 10 MHz — — 5 µs

FO< 10 MHz 40 µs

Enable Time TE FO  > 10 MHz — — 20 µs

FO< 10 MHz 60 µs

Skyworks压控振荡器/515CCA40M0000BAG/Si515低抖动晶振/6G路由器晶振        尺寸图

晶体振荡器产品特性：

支持来自的任何频率100kHz至250MHz

低抖动操作

交付周期短：<2周

AT切基模晶体确保高可靠性/低老化

高电源噪声抑制

1%控制电压线性

可用CMOS、LVPECL、LVDS，和HCSL输出

可选集成1:2 CMOS扇出缓存

3.3和2.5 V电源选项

行业标准5x7、3.2x5和2.5x3.2 mm包装

无铅/符合RoHS

可选择的Kv（60、90、120，150ppm/V）
