Suntsu石英谐振器,SXT224计算机晶振,SXT22410DA48-48.000M
频率：48MHZ
尺寸：2.5x2.0mm
Suntsu石英谐振器,SXT224计算机晶振,SXT22410DA48-48.000M，尺寸2.5x2.0mm，频率48MHZ，松图SMD晶振，欧美进口晶振，无源贴片晶振，Quartz Crystal，石英振动子，石英晶体谐振器，SMD晶振，2520mm无源晶振，48MHZ贴片晶振，无源晶体，无铅环保晶振，轻薄型晶振，四脚贴片晶振，高质量晶振，低损耗晶振，低功耗晶振，低成本晶振，蓝牙应用晶振，无线应用程序晶振，计算机晶振，高密度应用，娱乐设备晶振，影音系统晶振，电信应用晶振，具有高质量低成本的特点。
贴片石英晶体产品可快速满足不同应用的需求，适用于蓝牙，PCMCIA，无线应用程序，计算机和调制解调器，高密度应用，娱乐设备，影音系统等应用。Suntsu石英谐振器,SXT224计算机晶振,SXT22410DA48-48.000M.
订购热线：0755-27838351
Suntsu石英谐振器,SXT224计算机晶振,SXT22410DA48-48.000M，尺寸2.5x2.0mm，频率48MHZ，松图SMD晶振，欧美进口晶振，无源贴片晶振，Quartz Crystal，石英振动子，石英晶体谐振器，SMD晶振，2520mm无源晶振，48MHZ贴片晶振，无源晶体，无铅环保晶振，轻薄型晶振，四脚贴片晶振，高质量晶振，低损耗晶振，低功耗晶振，低成本晶振，蓝牙应用晶振，无线应用程序晶振，计算机晶振，高密度应用，娱乐设备晶振，影音系统晶振，电信应用晶振，具有高质量低成本的特点。
贴片石英晶体产品可快速满足不同应用的需求，适用于蓝牙，PCMCIA，无线应用程序，计算机和调制解调器，高密度应用，娱乐设备，影音系统等应用。Suntsu石英谐振器,SXT224计算机晶振,SXT22410DA48-48.000M.

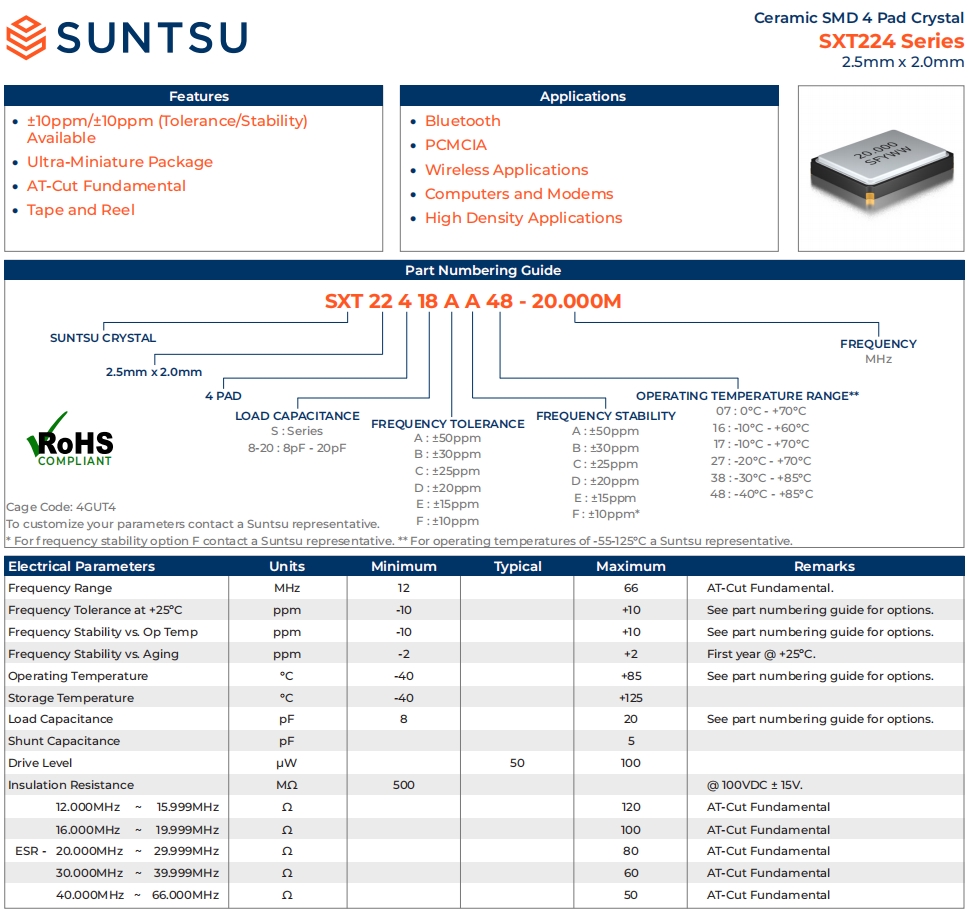

Suntsu石英谐振器,SXT224计算机晶振,SXT22410DA48-48.000M 参数表
| Electrical Parameters Units Minimum Typical Maximum Remarks | ||||||||||||||||||||
| Frequency Range | MHz |
|
48 |
|
AT-Cut Fundamental. | |||||||||||||||
| Frequency Tolerance at +25ºC | ppm | -10 | +10 | See part numbering guide for options. | ||||||||||||||||
| Frequency Stability vs. Op Temp | ppm | -10 | +10 | See part numbering guide for options. | ||||||||||||||||
| Frequency Stability vs. Aging | ppm | -2 | +2 | First year @ +25ºC. | ||||||||||||||||
| Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | ||||||||||||||||
| Storage Temperature | °C | -40 | +125 | |||||||||||||||||
| Load Capacitance | pF | 8 | 20 | See part numbering guide for options. | ||||||||||||||||
| Shunt Capacitance | pF | 5 | ||||||||||||||||||
| Drive Level | µW | 50 | 100 | |||||||||||||||||
| Insulation Resistance | M? | 500 | @ 100VDC ± 15V. | |||||||||||||||||
| 12.000MHz ~ 15.999MHz | ? | 120 | AT-Cut Fundamental | |||||||||||||||||
| 16.000MHz ~ 19.999MHz | ? | 100 | AT-Cut Fundamental | |||||||||||||||||
| ESR - 20.000MHz ~ 29.999MHz | ? | 80 | AT-Cut Fundamental | |||||||||||||||||
| 30.000MHz ~ 39.999MHz | ? | 60 | AT-Cut Fundamental | |||||||||||||||||
| 40.000MHz ~ 66.000MHz | ? | 50 | AT-Cut Fundamental | |||||||||||||||||

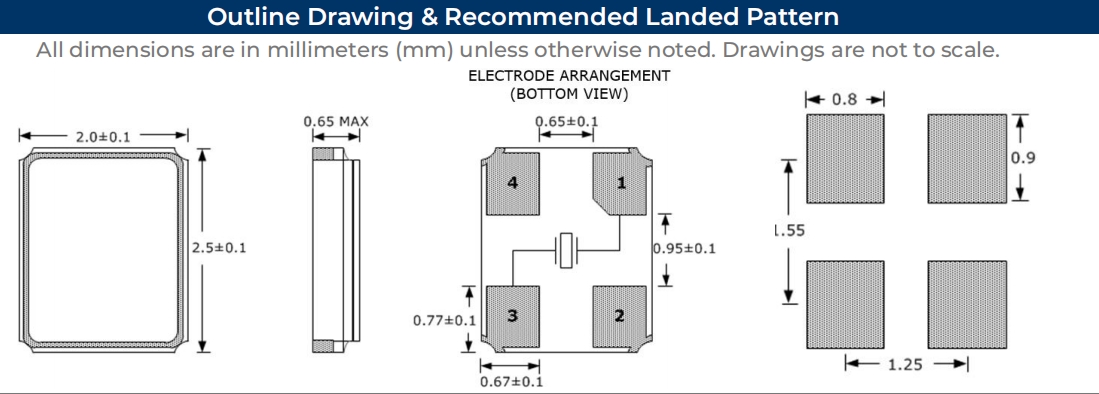

Suntsu石英谐振器,SXT224计算机晶振,SXT22410DA48-48.000M 尺寸图
Suntsu石英谐振器,SXT224计算机晶振,SXT22410DA48-48.000M
产品特性：
±10ppm/±10ppm（公差/稳定性）可获得的
SMD晶体超小型封装
AT切割基础
磁带和卷轴
| Part Number | Manufacturer | Package Size | Load Cap. | Freq. Tolerance | Freq. Stability | Operating Temp. | Frequency |
| SXT22410DA38-25.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -30°C - +85°C | 25.000M |
| SXT22410DA38-26.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -30°C - +85°C | 26.000M |
| SXT22410DA38-27.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -30°C - +85°C | 27.000M |
| SXT22410DA38-27.120M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -30°C - +85°C | 27.120M |
| SXT22410DA38-30.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -30°C - +85°C | 30.000M |
| SXT22410DA38-32.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -30°C - +85°C | 32.000M |
| SXT22410DA38-38.400M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -30°C - +85°C | 38.400M |
| SXT22410DA38-40.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -30°C - +85°C | 40.000M |
| SXT22410DA38-48.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -30°C - +85°C | 48.000M |
| SXT22410DA48-12.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 12.000M |
| SXT22410DA48-16.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 16.000M |
| SXT22410DA48-20.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 20.000M |
| SXT22410DA48-24.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 24.000M |
| SXT22410DA48-24.576M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 24.576M |
| SXT22410DA48-25.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 25.000M |
| SXT22410DA48-26.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 26.000M |
| SXT22410DA48-27.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 27.000M |
| SXT22410DA48-27.120M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 27.120M |
| SXT22410DA48-30.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 30.000M |
| SXT22410DA48-32.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 32.000M |
| SXT22410DA48-38.400M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 38.400M |
| SXT22410DA48-40.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 40.000M |
| SXT22410DA48-48.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±50ppm | -40°C - +85°C | 48.000M |
| SXT22410DB07-12.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 12.000M |
| SXT22410DB07-16.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 16.000M |
| SXT22410DB07-20.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 20.000M |
| SXT22410DB07-24.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 24.000M |
| SXT22410DB07-24.576M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 24.576M |
| SXT22410DB07-25.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 25.000M |
| SXT22410DB07-26.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 26.000M |
| SXT22410DB07-27.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 27.000M |
| SXT22410DB07-27.120M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 27.120M |
| SXT22410DB07-30.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 30.000M |
| SXT22410DB07-32.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 32.000M |
| SXT22410DB07-38.400M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 38.400M |
| SXT22410DB07-40.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 40.000M |
| SXT22410DB07-48.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | 0°C - +70°C | 48.000M |
| SXT22410DB16-12.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +60°C | 12.000M |
| SXT22410DB16-16.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +60°C | 16.000M |
| SXT22410DB16-20.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +60°C | 20.000M |
| SXT22410DB16-24.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +60°C | 24.000M |
| SXT22410DB16-24.576M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +60°C | 24.576M |
| SXT22410DB16-25.000M | SUNTSU晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +60°C | 25.000M |
| SXT22410DB16-26.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +60°C | 26.000M |
| SXT22410DB16-27.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +60°C | 27.000M |
| SXT22410DB16-27.120M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +60°C | 27.120M |
| SXT22410DB16-30.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +60°C | 30.000M |
| SXT22410DB16-32.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +60°C | 32.000M |
| SXT22410DB16-38.400M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +60°C | 38.400M |
| SXT22410DB16-40.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +60°C | 40.000M |
| SXT22410DB16-48.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +60°C | 48.000M |
| SXT22410DB17-12.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +70°C | 12.000M |
| SXT22410DB17-16.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +70°C | 16.000M |
| SXT22410DB17-20.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +70°C | 20.000M |
| SXT22410DB17-24.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +70°C | 24.000M |
| SXT22410DB17-24.576M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +70°C | 24.576M |
| SXT22410DB17-25.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +70°C | 25.000M |
| SXT22410DB17-26.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +70°C | 26.000M |
| SXT22410DB17-27.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +70°C | 27.000M |
| SXT22410DB17-27.120M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +70°C | 27.120M |
| SXT22410DB17-30.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +70°C | 30.000M |
| SXT22410DB17-32.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +70°C | 32.000M |
| SXT22410DB17-38.400M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +70°C | 38.400M |
| SXT22410DB17-40.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +70°C | 40.000M |
| SXT22410DB17-48.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -10°C - +70°C | 48.000M |
| SXT22410DB27-12.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -20°C - +70°C | 12.000M |
| SXT22410DB27-16.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -20°C - +70°C | 16.000M |
| SXT22410DB27-20.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -20°C - +70°C | 20.000M |
| SXT22410DB27-24.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -20°C - +70°C | 24.000M |
| SXT22410DB27-24.576M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -20°C - +70°C | 24.576M |
| SXT22410DB27-25.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -20°C - +70°C | 25.000M |
| SXT22410DB27-26.000M | 松图晶振 | 2.5X2.0 SMD (4 PAD) CRYSTAL | 10pF | ±20ppm | ±30ppm | -20°C - +70°C | 26.000M |
