安基轻薄晶体,C16物联网晶振,C16-32.000-8-3030-X-R
prevnext

安基轻薄晶体,C16物联网晶振,C16-32.000-8-3030-X-R

频率：32MHZ

尺寸：1.6x1.2mm

安基轻薄晶体,C16物联网晶振,C16-32.000-8-3030-X-R，尺寸1.6x1.2mm，频率32MHZ，Aker石英晶振，欧美进口晶振，无源贴片晶振，石英晶体，石英振动子，SMD晶振，石英晶体谐振器，1612超小型晶振，32MHZ无源晶振，石英贴片晶振，四脚贴片晶振，无铅环保晶振，高质量晶振，低功耗晶振，低损耗晶振，无铅晶振，轻薄型晶振，蓝牙音响专用晶振，车载MP3晶振，照相机专用晶振，手提电脑晶振、娱乐设备晶振，物联网专用晶振，具有低损耗高质量的特点。

SMD晶体产品可满足不同应用程序的需求，尤其适合用于蓝牙音响，车载MP3，照相机，手提电脑、娱乐设备，物联网等领域.安基轻薄晶体,C16物联网晶振,C16-32.000-8-3030-X-R.

订购热线：0755-27838351
QQ咨询 点击这里给我发消息

TC-1

安基轻薄晶体,C16物联网晶振,C16-32.000-8-3030-X-R，尺寸1.6x1.2mm，频率32MHZ，Aker石英晶振，欧美进口晶振，无源贴片晶振，石英晶体，石英振动子，SMD晶振，石英晶体谐振器，1612超小型晶振，32MHZ无源晶振，石英贴片晶振，四脚贴片晶振，无铅环保晶振，高质量晶振，低功耗晶振，低损耗晶振，无铅晶振，轻薄型晶振，蓝牙音响专用晶振，车载MP3晶振，照相机专用晶振，手提电脑晶振、娱乐设备晶振，物联网专用晶振，具有低损耗高质量的特点。

SMD晶体产品可满足不同应用程序的需求，尤其适合用于蓝牙音响，车载MP3，照相机，手提电脑、娱乐设备，物联网等领域.安基轻薄晶体,C16物联网晶振,C16-32.000-8-3030-X-R.

TC-2

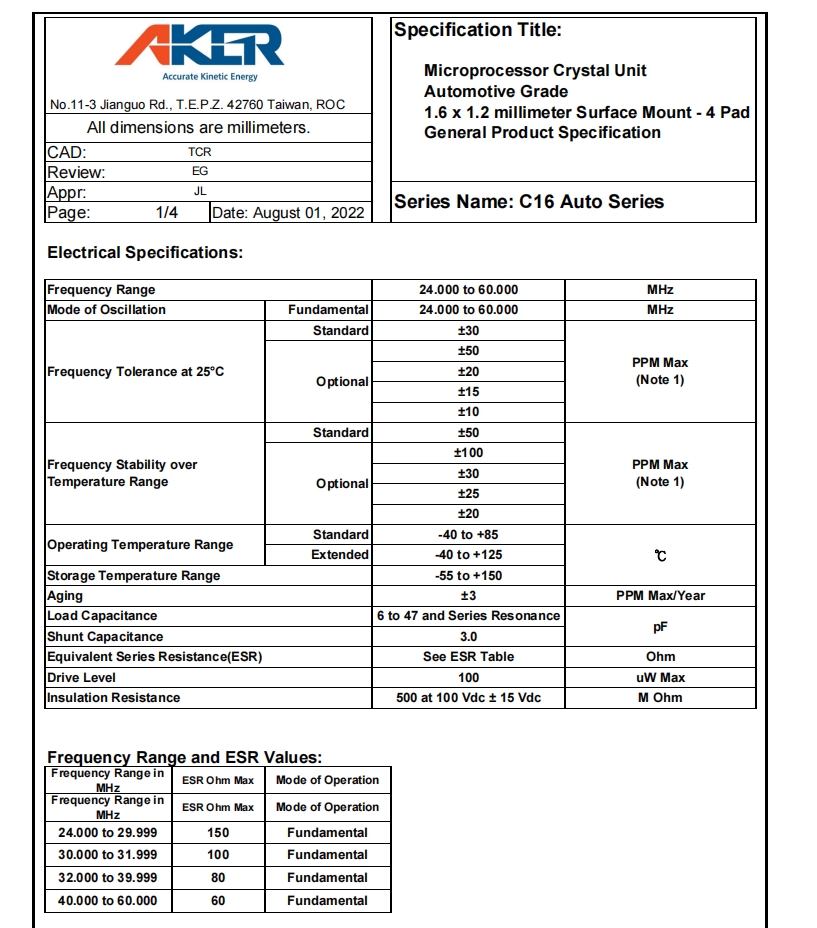

安基轻薄晶体,C16物联网晶振,C16-32.000-8-3030-X-R     参数表

Frequency Range 32.000 MHz
Mode of Oscillation Fundamental 24.000 to 60.000 MHz
Frequency Tolerance at 25°C Standard ±30 PPM Max
(Note 1)
Optional ±50
±20
±15
±10
Frequency Stability over
Temperature Range 		Standard ±50 PPM Max
(Note 1)
Optional ±100
±30
±25
±20
Operating Temperature Range Standard -40 to +85 ℃
Extended -40 to +125
Storage Temperature Range -55 to +150
Aging ±3 PPM Max/Year
Load Capacitance 6 to 47 and Series Resonance pF
Shunt Capacitance 3.0
Equivalent Series Resistance(ESR) See ESR Table Ohm
Drive Level 100 uW Max
Insulation Resistance 500 at 100 Vdc ± 15 Vdc M Ohm
TC-3安基轻薄晶体,C16物联网晶振,C16-32.000-8-3030-X-R        尺寸图

C16 安基轻薄晶体,C16物联网晶振,C16-32.000-8-3030-X-R

晶振产品特性：

微处理器晶体单元

汽车等级

1.6x1.2毫米表面安装-4个衬垫

通用产品规范

C16 1

欧美晶振编码 Mfr Description Series Frequency Frequency Stability Frequency Tolerance
C2E-16.000-8-1530-X-R Aker Technology Corp CRYSTAL 16.0000MHZ 8PF SMD C2E 16 MHz ±30ppm ±15ppm
C3E-8.000-10-3030-R Aker Technology Corp CRYSTAL 8.0000MHZ 10PF SMD C3E 8 MHz ±30ppm ±30ppm
C3E-8.000-10-3030-X-R Aker Technology Corp CRYSTAL 8.0000MHZ 10PF SMD C3E 8 MHz ±30ppm ±30ppm
C3E-8.000-18-3030-X-R Aker Technology Corp CRYSTAL 8.0000MHZ 18PF SMD C3E 8 MHz ±30ppm ±30ppm
C3E-8.000-18-3030-R Aker Technology Corp CRYSTAL 8.0000MHZ 18PF SMD C3E 8 MHz ±30ppm ±30ppm
C1E-32.000-10-1015-X-R Aker Technology Corp CRYSTAL 32.0000MHZ 10PF SMD C1E 32 MHz ±15ppm ±10ppm
C1E-25.000-20-2030-R Aker Technology Corp CRYSTAL 25.0000MHZ 20PF SMD C1E 25 MHz ±30ppm ±20ppm
C1E-24.000-10-1015-R Aker Technology Corp CRYSTAL 24.0000MHZ 10PF SMD C1E 24 MHz ±15ppm ±10ppm
C1E-24.000-10-1010-R Aker Technology Corp CRYSTAL 24.0000MHZ 10PF SMD C1E 24 MHz ±10ppm ±10ppm
C1E-32.000-8-1515-R Aker Technology Corp CRYSTAL 32.0000MHZ 8PF SMD C1E 32 MHz ±15ppm ±15ppm
C3E-16.000-12-1015-X-M Aker Technology Corp CRYSTAL 16.0000MHZ 12PF SMD C3E 16 MHz ±15ppm ±10ppm
C16-32.000-8-3030-X-R Aker Technology Corp CRYSTAL 32.0000MHZ 8PF SMD C16 32 MHz ±30ppm ±30ppm
C16-26.000-8-1520-R Aker Technology Corp CRYSTAL 26.0000MHZ 8PF SMD C16 26 MHz ±20ppm ±15ppm
C5S-26.000-16-1010-R Aker Technology USA CRYSTAL 26.0000MHZ 16PF SMD C5S 26 MHz ±10ppm ±10ppm
C5S-8.000-18-3030-R Aker Technology Corp CRYSTAL 8.0000MHZ 18PF SMD C5S 8 MHz ±30ppm ±30ppm
CAA-4.000-18-3050-X-R Aker Technology Corp CRYSTAL 4MHZ 18PF SMD CAA 4 MHz ±50ppm ±30ppm
CAA-11.0592-18-3050-R Aker Technology Corp CRYSTAL 11.0592MHZ 18PF SMD CAA 11.0592 MHz ±50ppm ±30ppm
CAA-8.000-18-3050-X-R Aker Technology Corp CRYSTAL 8MHZ 18PF SMD CAA 8 MHz ±50ppm ±30ppm
CAA-40.000-18-3050-R Aker Technology Corp CRYSTAL 40MHZ 18PF SMD CAA 40 MHz ±50ppm ±30ppm
C3E-24.000-9-1010-R Aker Technology Corp CRYSTAL 24MHZ 9PF SMD C3E 24 MHz ±10ppm ±10ppm
C3E-12.000-12-1020-X-R Aker Technology Corp CRYSTAL 12MHZ 12PF SMD C3E 12 MHz ±10ppm ±20ppm
C3E-12.000-18-1020-X-R Aker Technology Corp CRYSTAL 12MHZ 18PF SMD C3E 12 MHz ±10ppm ±20ppm
C3E-25.000-20-1015-X-R Aker Technology Corp CRYSTAL 25MHZ 20PF SMD C3E 25 MHz ±15ppm ±10ppm
C3E-24.000-9-1015-X-R Aker Technology Corp CRYSTAL 24MHZ 9PF SMD C3E 24 MHz ±15ppm ±10ppm
C3E-16.000-9-1015-X-R Aker Technology Corp CRYSTAL 16MHZ 9PF SMD C3E 16 MHz ±15ppm ±10ppm
C2E-12.000-18-1020-R Aker Technology Corp CRYSTAL12MHZ 18PF SMD C2E 12 MHz ±20ppm ±10ppm
C3E-8.000-20-1020-R Aker Technology Corp CRYSTAL 8.0000MHZ 12PF SMD C3E 8 MHz ±20ppm ±10ppm
C3E-8.000-18-1020-X-R Aker Technology Corp CRYSTAL 8MHZ 18PF SMD C3E 8 MHz ±20ppm ±10ppm
C3E-8.000-8-1015-R Aker Technology Corp CRYSTAL 8MHZ 8PF SMD C3E 8 MHz ±10ppm ±15ppm
C3E-12.000-8-2050-X1-R Aker Technology Corp CRYSTAL 12MHZ 8PF SMD AEC-Q200 C3E X1 12 MHz ±50ppm ±20ppm
C3E-16.000-10-3050-X1-R Aker Technology Corp CRYSTAL 16MHZ 10PF SMD AEC-Q200 C3E X1 16 MHz ±50ppm ±30ppm
C16-32.000-8-1515-X-R Aker Technology Corp CRYSTAL 32MHZ 8PF SMD C16 32 MHz ±15ppm ±15ppm
C3E-20.000-8-3050-X1-R Aker Technology Corp CRYSTAL 20MHZ 8PF SMD AEC-Q200 C3E X1 20 MHz ±50ppm ±30ppm
C2E-12.000-18-1020-X-R Aker Technology Corp CRYSTAL12MHZ 18PF SMD C2E 12 MHz ±20ppm ±10ppm
C5S-12.000-18-1020-R Aker Technology Corp CRYSTAL 12.0000MHZ 18PF SMD C5S 12 MHz ±20ppm ±10ppm
C3E-8.000-18-1020-R Aker Technology Corp CRYSTAL 8.0000MHZ 18PF SMD C3E 8 MHz ±20ppm ±10ppm
C3E-8.000-12-1020-M Aker Technology Corp CRYSTAL 8MHZ 12PF SMD C3E 8 MHz ±10ppm ±20ppm
C2E-12.000-8-2050-X1-R Aker Technology Corp CRYSTAL 12MHZ 8PF SMD AEC-Q200 C2E X1 12 MHz ±50ppm ±20ppm
C3E-16.000-10-2050-X1-R Aker Technology Corp CRYSTAL 10MHZ 10PF SMD AEC-Q200 C3E X1 10 MHz ±50ppm ±20ppm
C3E-30.000-8-2050-X1-R Aker Technology Corp CRYSTAL 30MHZ 8PF SMD AEC-Q200 C3E X1 30 MHz ±50ppm ±20ppm
C7S-12.000-12-3030-X-R Aker Technology Corp CRYSTAL 12MHZ 12PF SMD C7S 12 MHz ±30ppm ±30ppm
C7S-8.000-18-1020-R Aker Technology Corp CRYSTAL 8.0000MHZ 18PF SMD C7S 8 MHz ±20ppm ±10ppm
C7S-8.000-18-1030-X-R Aker Technology Corp CRYSTAL 8MHZ 18PF SMD C7S 8 MHz ±30ppm ±10ppm
CA4-16.000-18-3050-R Aker Technology Corp CRYSTAL 16MHZ 18PF SMD CA4 16 MHz ±50ppm ±30ppm
CA4-8.000-16-3050-R Aker Technology Corp CRYSTAL 8.000MHZ 16PF SMD CA4 8 MHz ±50ppm ±30ppm
C3E-8.000-10-1020-M Aker Technology Corp CRYSTAL 8MHZ 10PF SMD C3E 8 MHz ±20ppm ±10ppm
C16-96.000-8-1520-X2-R Aker Technology Corp CRYSTAL 96MHZ 8PF SMD - 96 MHz ±15ppm ±20ppm
C1E-76.800-10-1012-X-M Aker Technology Corp CRYSTAL 76.8MHZ 10PF SMD C1E 76.8 MHz ±10ppm ±10ppm
C1E-80.000-10-1015-X-M Aker Technology Corp CRYSTAL 80MHZ 10PF SMD C1E 80 MHz ±10ppm ±10ppm
C1E-76.800-8-1012-X-M Aker Technology Corp CRYSTAL 76.8MHZ 8PF SMD C1E 46.8 MHz ±10ppm ±10ppm
C1E-80.000-8-1015-X-M Aker Technology Corp CRYSTAL 80MHZ8PF SMD C1E 80 MHz ±10ppm ±10ppm
C3E-24.576-12-3030-X-R Aker Technology Corp CRYSTAL 24.5760MHZ 12PF SMD C3E 24.576 MHz ±30ppm ±30ppm
C3E-30.000-12-1020-X-R Aker Technology Corp CRYSTAL 30MHZ 12PF SMD C3E 30 MHz ±10ppm ±20ppm
C3E-12.000-12-1015-R Aker Technology Corp CRYSTAL 12.0000MHZ 12PF SMD C3E 12 MHz ±15ppm ±10ppm
C3E-25.000-8-1015-X-R Aker Technology Corp CRYSTAL 25.0000MHZ 8PF SMD C3E 25 MHz ±15ppm ±10ppm
C3E-26.000-10-1015-X-R3 Aker Technology Corp CRYSTAL 26.0000MHZ 10PF SMD C3E 26 MHz ±15ppm ±10ppm
C16-26.000-8-1010-R Aker Technology Corp CRYSTAL 26MHZ 8PF SMD C16 26 MHz ±10ppm ±10ppm
C3E-16.000-8-2050-X1-R Aker Technology Corp CRYSTAL 16MHZ 8PF SMD AEC-Q200 C3E X1 16 MHz ±50ppm ±20ppm
C3E-8.000-12-1020-R Aker Technology Corp CRYSTAL 8.0000MHZ 12PF SMD C3E 8 MHz ±20ppm ±10ppm
C2E-12.000-10-2050-X1-R Aker Technology Corp CRYSTAL 12MHZ 10PF SMD AEC-Q200 C2E X1 12 MHz ±50ppm ±20ppm
C1E-96.000-8-1216-X2-R Aker Technology Corp CRYSTAL 96MHZ 8PF SMD C1E X2 96 MHz ±16ppm ±12ppm
C3E-12.000-12-3030-X-R Aker Technology Corp CRYSTAL 12.0000MHZ 12PF SMD C3E 12 MHz ±30ppm ±30ppm
C3E-27.120-12-1010-R Aker Technology Corp CRYSTAL 27.1200MHZ 12PF SMD C3E 27.12 MHz ±10ppm ±10ppm
C3E-24.576-12-1010-R Aker Technology Corp CRYSTAL 24.5760MHZ 12PF SMD C3E 24.576 MHz ±10ppm ±10ppm
C3E-16.000-12-1015-R Aker Technology Corp CRYSTAL 16.0000MHZ 12PF SMD C3E 16 MHz ±15ppm ±10ppm
C3E-13.560-12-1530-X-R Aker Technology Corp CRYSTAL 13.5600MHZ 12PF SMD C3E 13.56 MHz ±30ppm ±15ppm
C2E-16.000-10-1010-R Aker Technology Corp CRYSTAL 16.0000MHZ 10PF SMD C2E 16 MHz ±10ppm ±10ppm
C1E-24.000-10-1015-M Aker Technology Corp CRYSTAL 24.0000MHZ 10PF SMD C1E 24 MHz ±15ppm ±10ppm
C2E-25.000-10-3030-X-M Aker Technology Corp CRYSTAL 25.0000MHZ 10PF SMD C2E 25 MHz ±30ppm ±30ppm
C2E-48.000-10-1020-X-R Aker Technology Corp CRYSTAL 48MHZ SMD FOR WIFI C2E 48 MHz ±20ppm ±10ppm
C3E-20.000-10-3050-X1-R Aker Technology Corp CRYSTAL 20MHZ 10PF SMD AEC-Q200 C3E X1 20 MHz ±50ppm ±30ppm
C1E-96.000-9.9-1216-X2-R Aker Technology Corp CRYSTAL 96MHZ 9.9PF SMD C1E 96 MHz ±16ppm ±12ppm
C1E-52.000-8-1012-X-M Aker Technology Corp CRYSTAL 52MHZ 10PF SMD C1E 52 MHz ±10ppm ±10ppm
C1E-52.000-10-1012-X-M Aker Technology Corp CRYSTAL 52MHZ 8PF SMD C1E 52 MHz ±10ppm ±10ppm
C3E-27.120-12-1020-X-R Aker Technology Corp CRYSTAL 27.120MHZ 12PF SMD C3E 27.12 MHz ±10ppm ±20ppm
C3E-16.000-9-1010-R Aker Technology Corp CRYSTAL 16MHZ 9PF SMD C3E 16 MHz ±10ppm ±10ppm
C5S-24.000-20-3030-X-R Aker Technology Corp CRYSTAL 24MHZ 20PF SMD C5S 24 MHz ±30ppm ±30ppm
C5S-12.000-16-5050-X-R Aker Technology Corp CRYSTAL 12MHZ 16PF SMD C5S 12 MHz ±50ppm ±50ppm
C5S-20.000-20-3050-X-R Aker Technology Corp CRYSTAL 20MHZ 20PF SMD C5S 20 MHz ±30ppm ±50ppm
C5S-12.000-16-3030-X-R Aker Technology USA CRYSTAL 12.0000MHZ 16PF SMD C5S 12 MHz ±30ppm ±30ppm
C5S-8.000-12-2020-X-R Aker Technology Corp CRYSTAL 8MHZ 12PF SMD C5S 8 MHz ±20ppm ±20ppm
C6S-16.000-12-5050-X-R Aker Technology Corp CRYSTAL 16MHZ 12PF SMD C6S 16 MHz ±50ppm ±50ppm
C2E-20.000-10-2050-X1-R Aker Technology Corp CRYSTAL 20MHZ 10PF SMD AEC-Q200 C2E X1 20 MHz ±50ppm ±20ppm
C5S-8.000-18-3030-X-R Aker Technology USA CRYSTAL 8.0000MHZ 18PF SMD C5S 8 MHz ±30ppm ±30ppm
C5S-8.000-16-3030-X-R Aker Technology USA CRYSTAL 8.0000MHZ 16PF SMD C5S 8 MHz ±30ppm ±30ppm
