NDK差分振荡器,NP2520SB交换机晶振,NP2520SB-156.25MHZ-NSC5301A          参数表

Parameters

SYM

Electrical Spec.

Notes

min

typ

max

Units

1

Nominal Frequency

fnom

156.25

MHz

2

Supply Voltage

VCC

+2.5 to +3.3

V

See Table.1

3

Current Consumption (Operating)

ICC

40

mA

at 25 。C

4

Current Consumption (Stand-by)

IST

30

μA

at 25 。C

5

Output Level

LVDS

6

Load Capacitance

RL

100

Ω

Out-Complementary Out

7

Operating Temperature Range

Topr

-40

+85

。C

8

Overall Frequency Tolerance

Δf/fnom

-50

+50

ppm

*1

9

Output Voltage

VOD

+0.247

+0.454

V

ΔVOD

50

mV

VOS

+1.125

+1.375

V

ΔVOS

50

mV

10

Rise Time(tr), Fall Time(tf)

tr/tf

0.4

ns

20 % to 80 % Waveform

11

Symmetry

SYM

45

55

%

at 50 % waveform

12

Start-up Time

tsu

10

ms

13

Phase Jitter

tpj

100

fs

*2

14

Output Wave Form

-

Square wave

15

Stand-by Function

#1 PAD input

#4, 5 PAD output

H level (0.7 VCC to VCC) or open

Operating

L level (0.3 VCC max)

High impedance

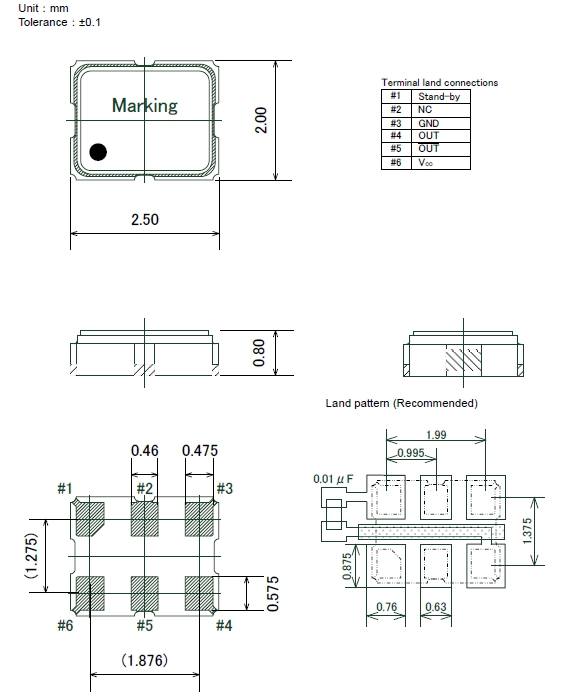

NDK差分振荡器,NP2520SB交换机晶振,NP2520SB-156.25MHZ-NSC5301A       尺寸图

NDK差分振荡器,NP2520SB交换机晶振,NP2520SB-156.25MHZ-NSC5301A

产品特性：

差分输出SPXO有源晶振

紧凑尺寸：2.5×2.0×0.8mm

电源电压：+2.5V或+3.3V

输出规格：LVDS

出色的低电压（最大100 fs@156.25MHz）

无铅。

Model	Nominal frequency[MHz]	Specification number	晶振厂家	Package size(LxW)[mm]	Output specification	Operating temperature rang[℃]
2725Z	40MHZ	NSA6297C	NDK LVDS晶振	5.0x3.2	CMOS	-10~+70
NP2520SA	156.25MHZ	NSC5300A	NDK LVDS晶振	2.5x2.0	LVPECL	-40~+85
NP2520SA	156.25MHZ	NSC5300B	NDK LVDS晶振	2.5x2.0	LVPECL	-40~+85
NP2520SB	156.25MHZ	NSC5301A	NDK LVDS晶振	2.5x2.0	LVDS	-40~+85
NP2520SB	156.25MHZ	NSC5301B	NDK LVDS晶振	2.5x2.0	LVDS	-40~+85
NP2520SAB	156.25MHZ	NSC5326A	NDK LVDS晶振	2.5x2.0	LVPECL	-40~+85
NP2520SAB	156.25MHZ	NSC5326B	NDK LVDS晶振	2.5x2.0	LVPECL	-40~+85
NP2520SBB	156.25MHZ	NSC5327A	NDK LVDS晶振	2.5x2.0	LVDS	-40~+85
NP2520SBB	156.25MHZ	NSC5327B	NDK LVDS晶振	2.5x2.0	LVDS	-40~+85
NP3225SA	100MHZ	NSC5080A	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+85
NP3225SA	122.88MHZ	NSC5080A	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+85
NP3225SA	125MHZ	NSC5080A	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+85
NP3225SA	156.25MHZ	NSC5080A	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+85
NP3225SA	175MHZ	NSC5080A	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+85
NP3225SA	100MHZ	NSC5341B	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+85
NP3225SA	122.88MHZ	NSC5341B	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+85
NP3225SA	125MHZ	NSC5341B	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+85
NP3225SA	156.25MHZ	NSC5341B	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+85
NP3225SA	175MHZ	NSC5341B	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+85
NP3225SA	100MHZ	NSC5189A	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+105
NP3225SA	122.88MHZ	NSC5189A	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+105
NP3225SA	125MHZ	NSC5189A	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+105
NP3225SA	156.25MHZ	NSC5189A	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+105
NP3225SA	175MHZ	NSC5189A	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+105
NP3225SA	100MHZ	NSC5342B	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+105
NP3225SA	122.88MHZ	NSC5342B	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+105
NP3225SA	125MHZ	NSC5342B	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+105
NP3225SA	156.25MHZ	NSC5342B	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+105
NP3225SA	175MHZ	NSC5342B	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+105
NP3225SA	200MHZ	NSC5235A	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+85
NP3225SA	212.5MHZ	NSC5235A	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+85
NP3225SA	200MHZ	NSC5235B	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+85
NP3225SA	212.5MHZ	NSC5235B	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+85
NP3225SA	200MHZ	NSC5237A	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+105
NP3225SA	212.5MHZ	NSC5237A	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+105
NP3225SA	200MHZ	NSC5237B	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+105
NP3225SA	212.5MHZ	NSC5237B	NDK LVDS晶振	3.2x2.5	LVPECL	-40~+105
NP3225SB	50MHZ	NSC5343A	NDK LVDS晶振	3.2x2.5	LVDS	-40~+85
NP3225SB	100MHZ	NSC5343A	NDK LVDS晶振	3.2x2.5	LVDS	-40~+85
NP3225SB	125MHZ	NSC5343A	NDK LVDS晶振	3.2x2.5	LVDS	-40~+85
NP3225SB	135MHZ	NSC5343A	NDK LVDS晶振	3.2x2.5	LVDS	-40~+85
NP3225SB	148MHZ	NSC5343A	NDK LVDS晶振	3.2x2.5	LVDS	-40~+85
NP3225SB	156.25MHZ	NSC5343A	NDK LVDS晶振	3.2x2.5	LVDS	-40~+85
NP3225SB	200MHZ	NSC5236A	NDK LVDS晶振	3.2x2.5	LVDS	-40~+85
NP3225SB	50MHZ	NSC5343B	NDK LVDS晶振	3.2x2.5	LVDS	-40~+85
NP3225SB	100MHZ	NSC5343B	NDK LVDS晶振	3.2x2.5	LVDS	-40~+85
NP3225SB	125MHZ	NSC5343B	NDK LVDS晶振	3.2x2.5	LVDS	-40~+85
NP3225SB	135MHZ	NSC5343B	NDK LVDS晶振	3.2x2.5	LVDS	-40~+85
NP3225SB	148MHZ	NSC5343B	NDK LVDS晶振	3.2x2.5	LVDS	-40~+85
NP3225SB	156.25MHZ	NSC5343B	NDK LVDS晶振	3.2x2.5	LVDS	-40~+85
NP3225SB	200MHZ	NSC5236B	NDK LVDS晶振	3.2x2.5	LVDS	-40~+85
NP3225SB	50MHZ	NSC5344A	NDK LVDS晶振	3.2x2.5	LVDS	-40~+105
NP3225SB	100MHZ	NSC5344A	NDK LVDS晶振	3.2x2.5	LVDS	-40~+105
NP3225SB	125MHZ	NSC5344A	NDK LVDS晶振	3.2x2.5	LVDS	-40~+105
NP3225SB	135MHZ	NSC5344A	NDK LVDS晶振	3.2x2.5	LVDS	-40~+105
NP3225SB	148MHZ	NSC5344A	NDK LVDS晶振	3.2x2.5	LVDS	-40~+105
NP3225SB	156.25MHZ	NSC5344A	NDK LVDS晶振	3.2x2.5	LVDS	-40~+105
NP3225SB	200MHZ	NSC5238A	NDK LVDS晶振	3.2x2.5	LVDS	-40~+105
NP3225SB	50MHZ	NSC5344B	NDK LVDS晶振	3.2x2.5	LVDS	-40~+105
NP3225SB	100MHZ	NSC5344B	NDK LVDS晶振	3.2x2.5	LVDS	-40~+105
NP3225SB	125MHZ	NSC5344B	NDK LVDS晶振	3.2x2.5	LVDS	-40~+105
NP3225SB	135MHZ	NSC5344B	NDK LVDS晶振	3.2x2.5	LVDS	-40~+105
NP3225SB	148MHZ	NSC5344B	NDK LVDS晶振	3.2x2.5	LVDS	-40~+105
NP3225SB	156.25MHZ	NSC5344B	NDK LVDS晶振	3.2x2.5	LVDS	-40~+105
NP3225SB	200MHZ	NSC5238B	NDK LVDS晶振	3.2x2.5	LVDS	-40~+105
NP3225SC	100MHZ	NSC5082A	NDK LVDS晶振	3.2x2.5	HCSL	-40~+85
NP3225SC	156.25MHZ	NSC5082A	NDK LVDS晶振	3.2x2.5	HCSL	-40~+85
NP3225SC	100MHZ	NSC5345B	NDK LVDS晶振	3.2x2.5	HCSL	-40~+85
NP3225SC	156.25MHZ	NSC5345B	NDK LVDS晶振	3.2x2.5	HCSL	-40~+85
NP3225SC	100MHZ	NSC5191A	NDK LVDS晶振	3.2x2.5	HCSL	-40~+105
NP3225SC	156.25MHZ	NSC5191A	NDK LVDS晶振	3.2x2.5	HCSL	-40~+105
NP3225SC	100MHZ	NSC5346B	NDK低抖动振荡器	3.2x2.5	HCSL	-40~+105
NP3225SC	156.25MHZ	NSC5346B	NDK低抖动振荡器	3.2x2.5	HCSL	-40~+105
NP3225SAB	100MHZ	NSC5186A	NDK低抖动振荡器	3.2x2.5	LVPECL	-40~+85
NP3225SAB	125MHZ	NSC5186A	NDK低抖动振荡器	3.2x2.5	LVPECL	-40~+85
NP3225SAB	156.25MHZ	NSC5186A	NDK低抖动振荡器	3.2x2.5	LVPECL	-40~+85
NP3225SAB	100MHZ	NSC5186B	日本电波晶体	3.2x2.5	LVPECL	-40~+85
NP3225SAB	125MHZ	NSC5186B	NDK低抖动振荡器	3.2x2.5	LVPECL	-40~+85
NP3225SAB	156.25MHZ	NSC5186B	NDK低抖动振荡器	3.2x2.5	LVPECL	-40~+85
NP3225SBB	100MHZ	NSC5187A	NDK低抖动振荡器	3.2x2.5	LVDS	-40~+85
NP3225SBB	125MHZ	NSC5187A	NDK低抖动振荡器	3.2x2.5	LVDS	-40~+85
